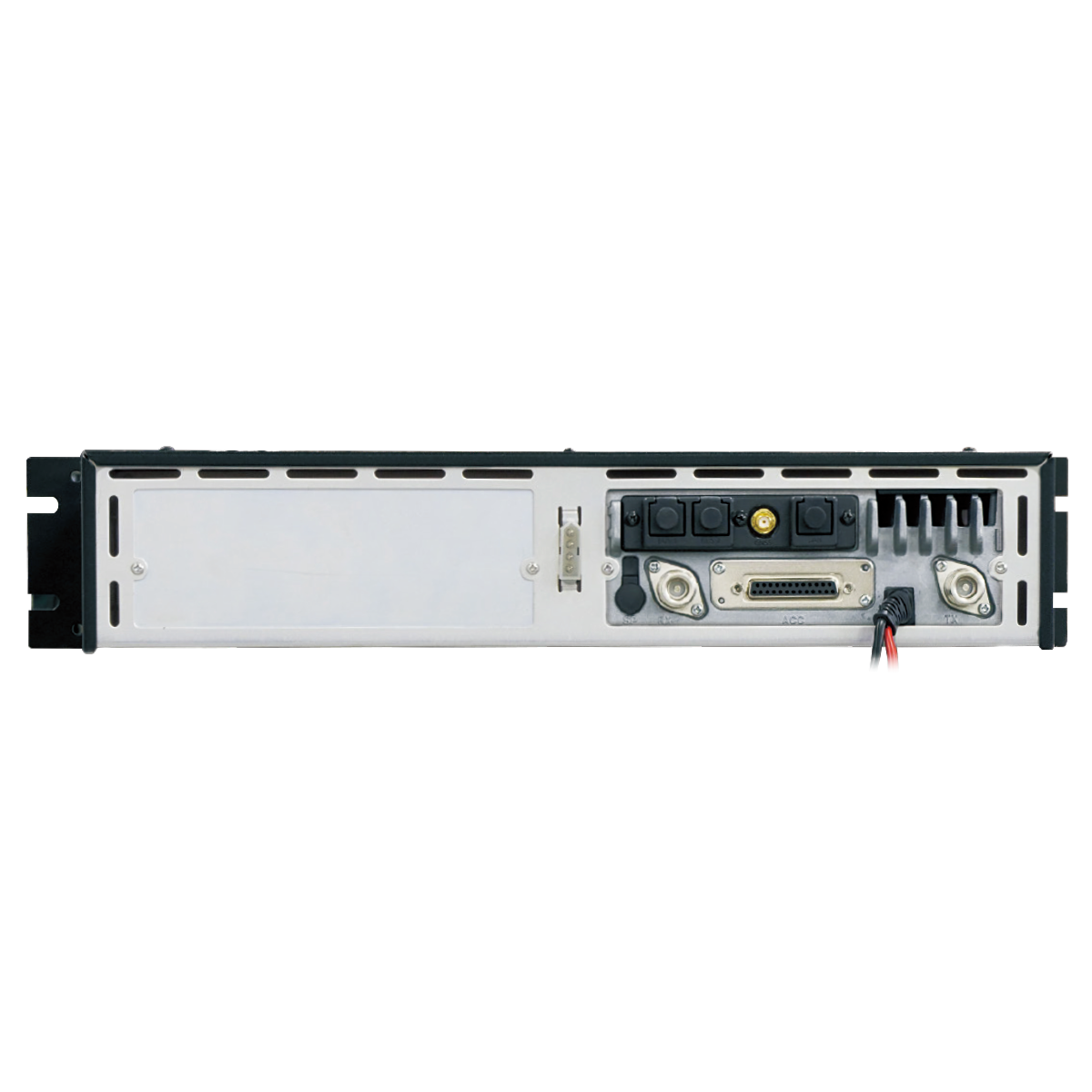

VHF IC-FR5300 AND UHF IC-FR6300 DIGITAL REPEATERS

---

FEATURES:

• Completely New CPU/FPGA Platform

• D-SUB 25-Pin Accessory Connector

• 50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*

• Capable of Installing Two RF modules in One Chassis

• System Scalability

• Digital/Analog Mixed Mode and Multiple Tone-Group Using CTCSS, DTCS Tone and RAN

SPECIFICATIONS:

General

			IC-F5300D/DS	IC-F6300D/DS
Frequency coverage (Varies according to version)			136-174 MHz (USA, EXP, EUR, CAN, AUS)	400-470 MHz (USA, EXP, EUR, CAN) 450-512 MHz (USA) 450-520 MHz (EXP, AUS) 330-400 MHz (EXP)
Number of channels			32 channels / 1 zone
Channel spacing (Varies according to version)			6.25/12.5/25 or 7.5/15/30 kHz
Type of emission			16K0F3E*1 (25 kHz), 14K0F3E (20 kHz, EUR), 11K0F3E (12.5/15 kHz, USA), 8K50F3E (12.5 kHz), 4K00F1E/F1D (6.25/7.5 kHz)
Power supply requirement			13.6 V DC nominal (USA/EXP), 13.2 V DC nominal (EUR, AUS)
Current drain (approx.)	Tx	High	15.0 A maximum (at 50 W) 8.0 A maximum (at 25 W)
	Rx	Max. audio	500 mA (FAN OFF)
		Standby	1900 mA
Dimensions (projections not included; W×H×D)		IC-FR5300/IC-FR6300	483 × 88 × 260 mm, 19.0 × 3.5 × 10.2 in
		UR-FR5300/UR-FR6300	176×60×194 mm, 6.9 × 2.4 × 7.6 in
Weight (approx.)		IC-FR5300/IC-FR6300	5.78 kg, 12.7 lb
		UR-FR5300/UR-FR6300	2.1 kg, 4.6 lb
Operating temperature range			-30°C to +60°C, –22 °F to +140 °F (USA, CAN, EXP) -25°C to +55°C, –13 °F to +131 °F (EUR, AUS)

Transmitter

		IC-F5300	IC-F6300
RF Output power (Hi, L2, L1) (Varies according to version)		50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions) 25 W, 10 W, 5.8 W (EUR, EXP Versions)
Audio harmonic distortion		0.9% typ. (AF 1kHz 40% deviation)(TIA-603) 1.1% typ. (AF 1kHz 40% deviation)(EN 300 086)	0.8% typ. (AF 1kHz 40% deviation)(TIA-603) 0.8% typ. (AF 1kHz 40% deviation)(EN 300 086)
Frequency stability		±1.0 ppm or less ±0.1 ppm or less (corrected using GNSS)
Spurious emissions		80 dB typ. (TIA-603) 0.25 μW (≤ 1 GHz), 1.00 μW (> 1 GHz) (EN301 166, EN300 086)
FM Hum and Noise		83 dB typ. (W) 77 dB typ. (N)	72 dB typ. (W) 67 dB typ. (N)

Receiver

		IC-F5013	IC-F6013
Sensitivity	Digital (1% BER)	–4.0 dBμV (0.32 μV) emf typ. (EN301 166)	–3.5 dBμV (0.33 μV) emf typ. (EN301 166)
	Analog (12 dB SINAD)	–119 dBm (0.25 μV) typ. (TIA-603)	–117 dBm (0.32 μV) typ. (TIA-603)
	Analog (20 dB SINAD)	–4.0/–4.0/–1.0 dBμV emf typ. (W/M/N)(EN300 086)	–3.0/–3.0/0.0 dBμV emf typ. (W/M/N)(EN300 086)
Adjacent channel selectivity (W/N)	Digital	66 dB typ. (EN301 166)	63 dB typ. (EN301 166)
	Analog	85/80 dB typ. (W/N)(TIA-603) 84/83/78 dB typ. (W/M/N)(EN300 086)	80/56 dB typ. (W/N)(TIA-603) 78/78/74 dB typ. (W/M/N)(EN300 086)
Spurious response rejection	Digital	87 dBμV emf typ. (EN301 166)	85 dBμV emf typ. (EN301 166)
	Analog	85 dB typ.(TIA-603) 81 dB typ. (EN300 086)	84 dB typ.(TIA-603) 81 dB typ. (EN300 086)
Intermodulation rejection	Digital	78 dBμV emf typ. (EN301 166)	78 dBμV emf typ. (EN301 166)
	Analog	81/81 dB typ. (W/N)(TIA-603) 75/74/73 dB typ. (W/M/N)(EN300 086)	80/80 dB typ. (W/N)(TIA-603) 74/74/73 dB typ. (W/M/N)(EN300 086)
AF output power		3.9 W typ. (at 5% distortion with a 4Ω load)
