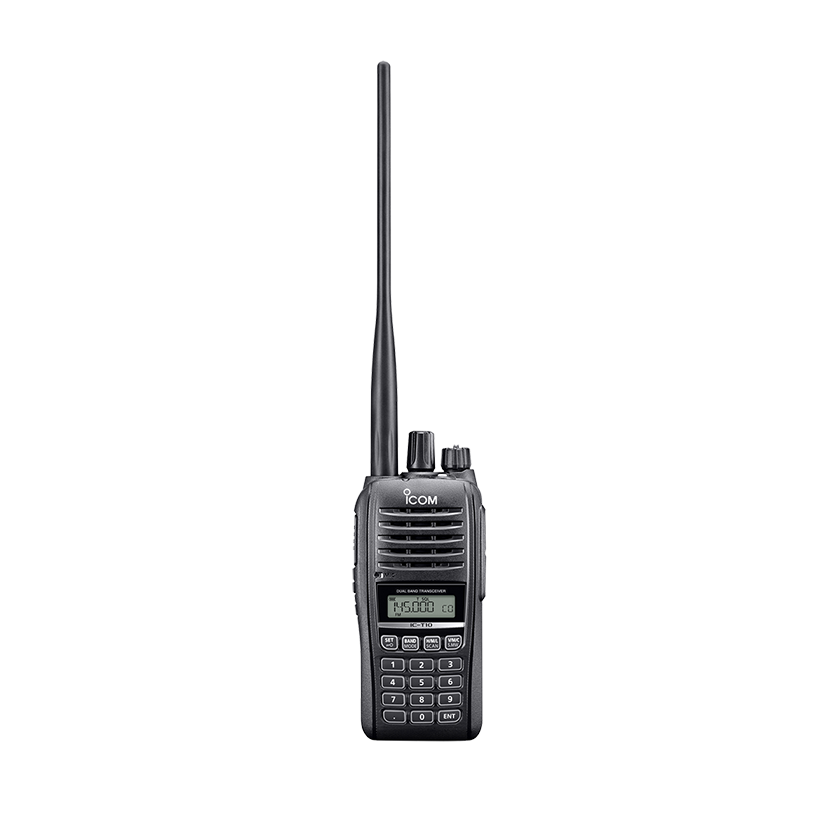

IC-T10 VHF-UHF DUAL BAND FM TRANSCEIVER

---

FEATURES:

• 5W RF Output in 144 and 430 MHz

• 1500 mW Loud and Intelligible Audio

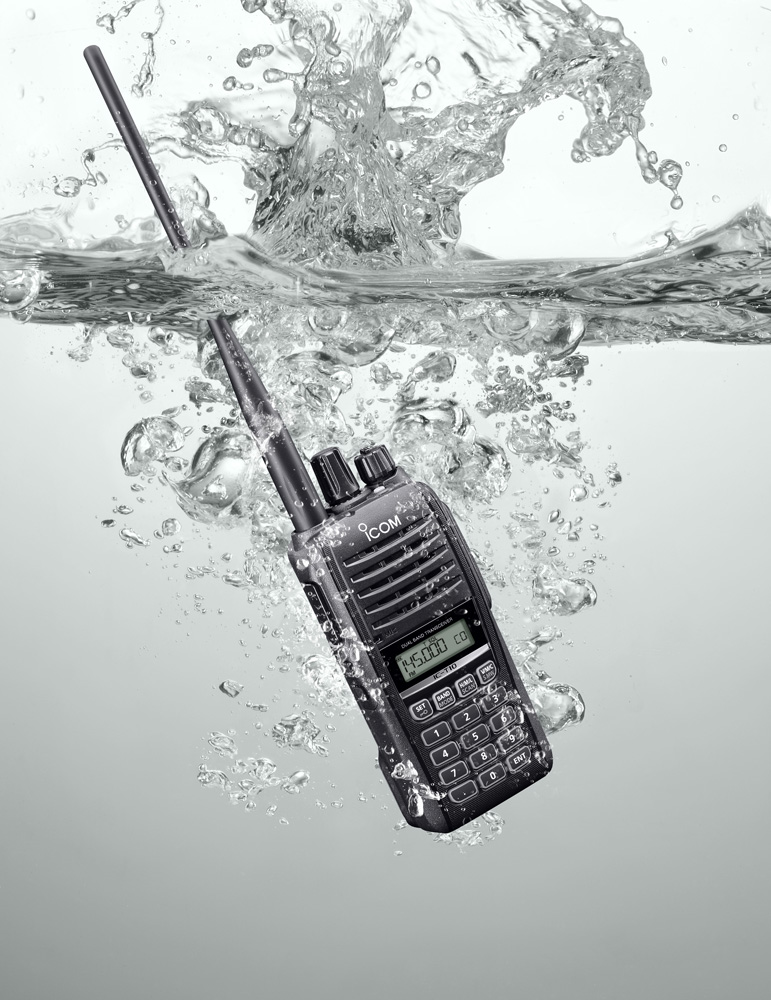

• IP67 Dust-tight and Waterproof

• Home Button on the Top Panel for Quick Access to Calling Channel

• Optional HM-222HLWP, Loud Audio SP-MIC

• FM Broadcast Receiver

• Up to 11 Hours* Operating Time

SPECIFICATIONS:

General

			IC-T10
Frequency Coverage	USA Version	TX	144–148, 430–450 MHz*1 (* Working range)
		RX	136–174, 400–479 MHz*1 (* Working range)
		FM Broadcast	88–108 MHz
	Export Version	TX	136–174, 400–479 MHz*2 (Working range)
		RX	136–174, 400–479 MHz*2 (Working range)
		FM Broadcast	76–108 MHz
	EUR Version	TX	144–146, 430–440 MHz
		RX	136–174, 400–479 MHz*3 (* Working range)
		FM Broadcast	76–108 MHz
Number of channels			208 channels (including 2 call and 6 scan edges)
Type of emission			F2D, F3E (FM)
Frequency stability			±2.5 ppm (–20°C to +60°C on the basis of 25°C )
Power supply requirement External DC power			7.2 V DC nominal 10–16 V DC (with AD-149H)
Current drain (approx.)		Tx High	Less than 2.5 A
		Rx Max. audio	Less than 600 mA
Antenna impedance			50 Ω (SMA)
Operating temperature range			–20°C to +60°C
Dimensions (W × H × D, Projections not included)			52.2 × 111.8 × 30.3 mm,  2.1 × 4.4 × 1.2 in (with BP-280)
Weight (Approximate)			278 g; 9.8 oz (with BP-280 and antenna)

Transmitter

		IC-F5400D/DS NXDN Version	IC-F6400D/DS NXDN Version
		IC-F5400DP/DPS dPMR Version	IC-F6400DP/DPS dPMR Version
Output power (Hi, L2, L1) (Depending on version)		50 W, 25 W, 5 W 25 W, 10 W, 5.8 W	45 W, 25 W, 4.5 W 25 W, 10 W, 5.8 W
Spurious emissions	USA	90 dB typ.	80 dB typ.
	EUR	0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz)
Frequency stability		±1.0ppm
Audio harmonic distortion (AF 1kHz 40% deviation)		0.5% typ.
FSK error		1% typ. (DVN/DN)
FM Hum and Noise		54/54 dB typ.

Receiver

		IC-F5400D/DS NXDN Version	IC-F6400D/DS NXDN Version
		IC-F5400DP/DPS dPMR Version	IC-F6400DP/DPS dPMR Version
Sensitivity	12dB SINAD	0.22 μV typ.	0.23 μV typ.
	20 dB SINAD (W/N)	–4.0/–4.0 dBμV emf typ.
	1% BER (DVN/DN)	–6.0/–5.0 dBμV emf typ.
Adjacent channel selectivity	(W/N)	75/72 dB typ.
	(DVN/DN)	65/68 dB typ.
Spurious response rejection		85 dB typ.
Intermodulation rejection	Analog (USA)	78 dB typ.	75 dB typ.
	Analog (EUR)	70 dB typ.	70 dB typ.
	DVN/DN	70/70 dB typ.	70/70 dB typ.
Audio output power	Internal SP (With 8 Ω load)	4.0 mW typ. (at 5% distortion)
	External SP (With 8 Ω load)	4.0 mW typ. (at 5% distortion)
