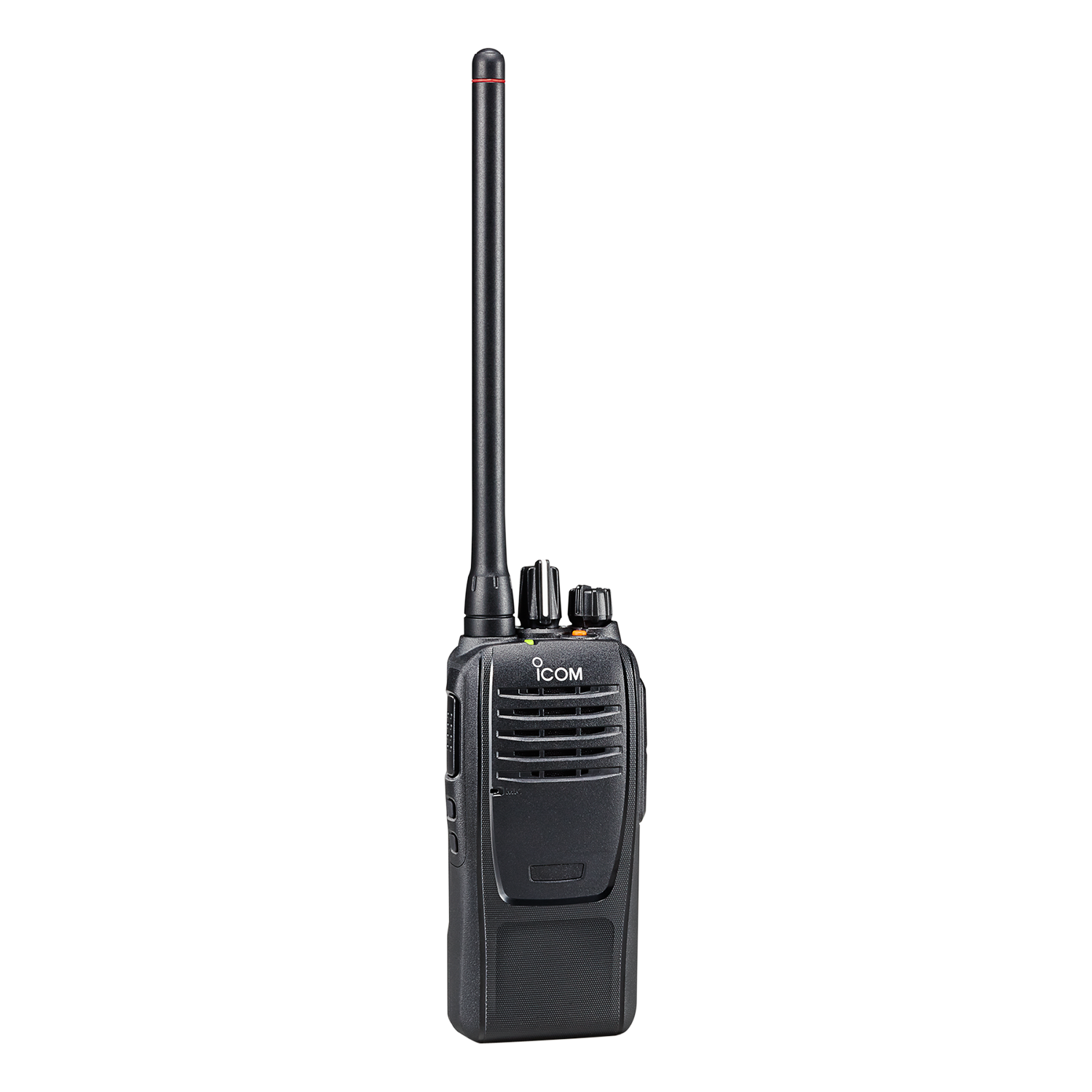

Digital Transceiver IC-F2100DT UHF Full keypad

---

FEATURES:

• Icom’s Custom High Power Handling Capacity Speaker for 1500 mW of Powerful Audio

• Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G)

• Optional 1500 mW Speaker-Microphone, HM-222HLWP*

• Multiple Operating Modes

• Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming

• AquaQuake™ Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit

• Motion/Stationary Detection, Man Down and Lone Worker Functions

• IDAS™ Conventional and Type-D Single-Site Trunking

SPECIFICATIONS:

General

			IC-F1100DT/S	IC-F1100D	IC-F2100DT/S	IC-F2100D
Frequency coverage (Varies according to version)			136–174 MHz (NXDN/dPMR)		400–470 MHz (NXDN/dPMR USA/EUR/EXP) 450–512 MHz (NXDN, USA) 450–520 MHz (NXDN, EXP)
Number of channels			128 channels/ 8 zones	16 channels	128 channels/ 8 zones	16 channels
Power supply requirement			7.5V DC nominal
Antenna impedance			50Ω
Current drain (approx.)	Tx		1.3A		1.6 A (at 5 W) 1.4 A (at 4 W)
	Rx		520 mA /110 mA (Max. audio (internal SP)/Standby)		520 mA /110 mA (Max. audio (internal SP)/Standby)
Dimensions (projections not included; W×H×D)		IC-F1100DS/D, IC-F2100DS/D	52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)
		IC-F1100DT, IC-F2100DT	52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)
Operating temperature range(Radio specification)			–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)
			–25°C to +55°C (Radio specification) (EUR)
Weight (approx.)			IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133) IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133) IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)
Type of emission* (*Depending onversion)			11K0F3E, 4K00F1E, 4K00F1D (USA)
			16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)
			16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)

Transmitter

		IC-F1100DT/S	IC-F1100D	IC-F2100DT/S	IC-F2100D
Output power (Hi, L2, L1)		5 W, 2 W, 1 W		5 W, 2 W, 1 W
Audio harmonic distortion		0.8% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)		0.7% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)
Spurious emissions		70 dB minimum (USA/EXP)
		0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)
Frequency stability		±2.0ppm		±1.0ppm
FSK error		5% maximum
External microphone connector		3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ
FM Hum and Noise (without CCITT filter)		46 dB typ. (25 kHz) (EXP), 44 dB typ. (12.5 kHz) (USA/EXP)		44 dB typical (12.5 kHz) (USA)
Residual modulations (with CCITT filter)		51 dB typical (25 kHz), 49 dB typical (20 kHz), 45 dB typical (12.5 kHz) (EUR/EXP)		54 dB typical (25 kHz), 52 dB typical (20 kHz), 48 dB typical (12.5 kHz) (EUR/EXP)
Maximum frequency deviation		± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Receiver

		IC-F1100DT/S	IC-F1100D	IC-F2100DT/S	IC-F2100D
Sensitivity	Digital (1% BER)	–9 dBμV typical emf (0.18 μV typical)		–8 dBμV typical emf (0.20 μV typical)
	Analog (12 dB SINAD)	0.24 μV typical		0.24 μV typical
	Analog (20 dB SINAD)	–5 dBμV typ. emf (25/20 kHz), –2 dBμV typ. emf (12.5 kHz)		–5 dBμV typ. emf (25/20 kHz), –2 dBμV typ. emf (12.5 kHz)
Adjacent channel selectivity (W/N)		77 dB typ. (25 kHz), 75 dB typ. (20 kHz), 67 dB typ. (12.5 kHz), 59 dB typ. (digital)		76 dB typ. (25 kHz), 75 dB typ. (20 kHz), 69 dB typ. (12.5 kHz), 58 dB typ. (digital)
Spurious response rejection		80 dB typical
Intermodulation rejection	Digital	71 dB typ. (USA/EXP), 74 dBμV emf typ. (EUR/EXP)		70 dB typ. (USA/EXP), 74 dBμV emf typ. (400–470 MHz, EUR/EXP)
	Analog	76 dB typ. (25 kHz, EXP), 75 dB typ. (12.5 kHz, USA/EXP), 69 dB typ. (EUR/EXP)		77 dB typ. (25 kHz, EXP), 77 dB typ. (12.5 kHz, USA/EXP), 70 dB typ. (EUR/EXP)
Hum and noise	(With CCITT filter)	48 dB typ. (25 kHz, EXP), 43 dB typ. (12.5 kHz, USA/EXP)		42 dB typical (12.5 kHz, USA)
	(Without CCITT filter)	51 dB typ. (25 kHz), 49 dB typ. (20 kHz), 46 dB typ. (12.5 kHz) (EUR/EXP)		50 dB typ. (25 kHz), 48 dB typ. (20 kHz), 45 dB typ. (12.5 kHz) (EUR)
AF output power (at 5% distortion 8Ω load)	Internal SP	1500 mW typical
	External SP	450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected*)		400 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected*)
External speaker connector		2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω
