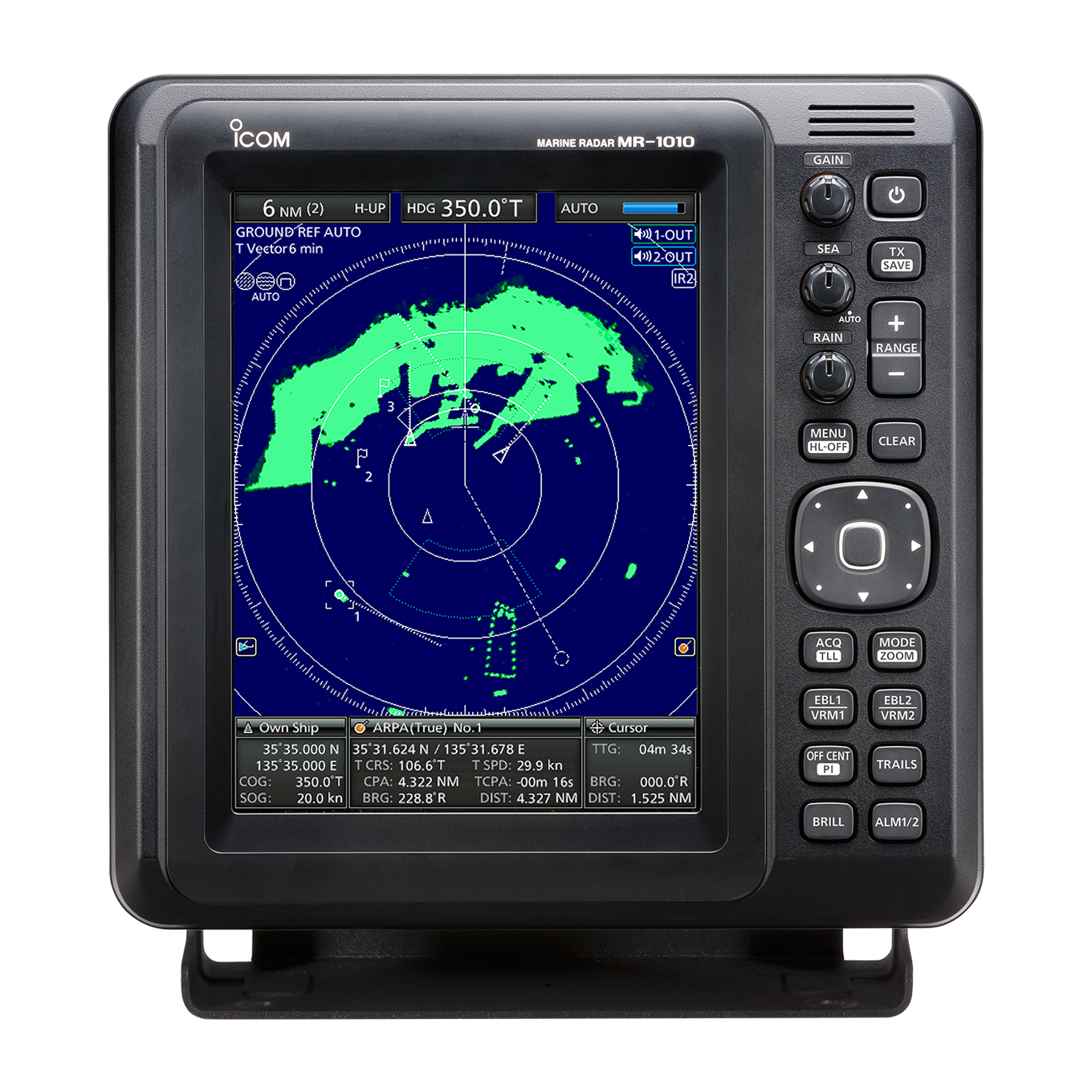

MR-1010R II MARINE RADAR

---

FEATURES:

• 36 NM Range Observation with 4 kW Output Radome Scanner

• Simplified ARPA (Automatic Radar Plotting Aids) Function*

• DSC (Digital Selective Calling) Information Function*

• AIS (Automatic Identification System) Overlay Function

• True Trail Function

• Wide Viewing Angle Color TFT LCD

SPECIFICATIONS:

Display Unit

Display type			10.4-inch Color TFT LCD
Resolution			480 × 640 dots
Minimum range			25 m; 82 ft (at 1⁄8 NM range)
Maximum range			36 NM
Preheat time			90 seconds
Power supply			10.2–42 V DC
Power consumption (at zero wind velocity)			55 W (approximately)
Range scales		NM	1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36
		km	1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48
Usable temperature range			−15°C to +55°C; +5°F to +131°F
Input data format			NMEA 0183, N+1, AUX, IEC61162-2
Output data format			NMEA 0183

Scanner Unit

Type	60 cm; 2 ft radome scanner
Rotation speed	24, 36 rpm typ.
Horizontal beamwidth	4° typ.
Vertical beamwidth	22° typ.
Sidelobe	−22 dB typ.
Usable temperature range	−25°C to +70°C; −13°F to +158°F
Usable humidity range	Less than 95% (at 40°C; +104°F)
Frequency	9410 MHz ±30 MHz
Modulation	P0N
Peak output power	4 kW
Pulse-width/repetition rate	80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 900 ns/720 Hz
Modulator	FET switching
Intermediate frequency	60 MHz (EUR Version), 250 MHz (EXP Version)
IF bandwidth	10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version)
Tuning	Auto/manual selectable
Supplied system cable	15 m; 49.2 ft (OPC-2341)
