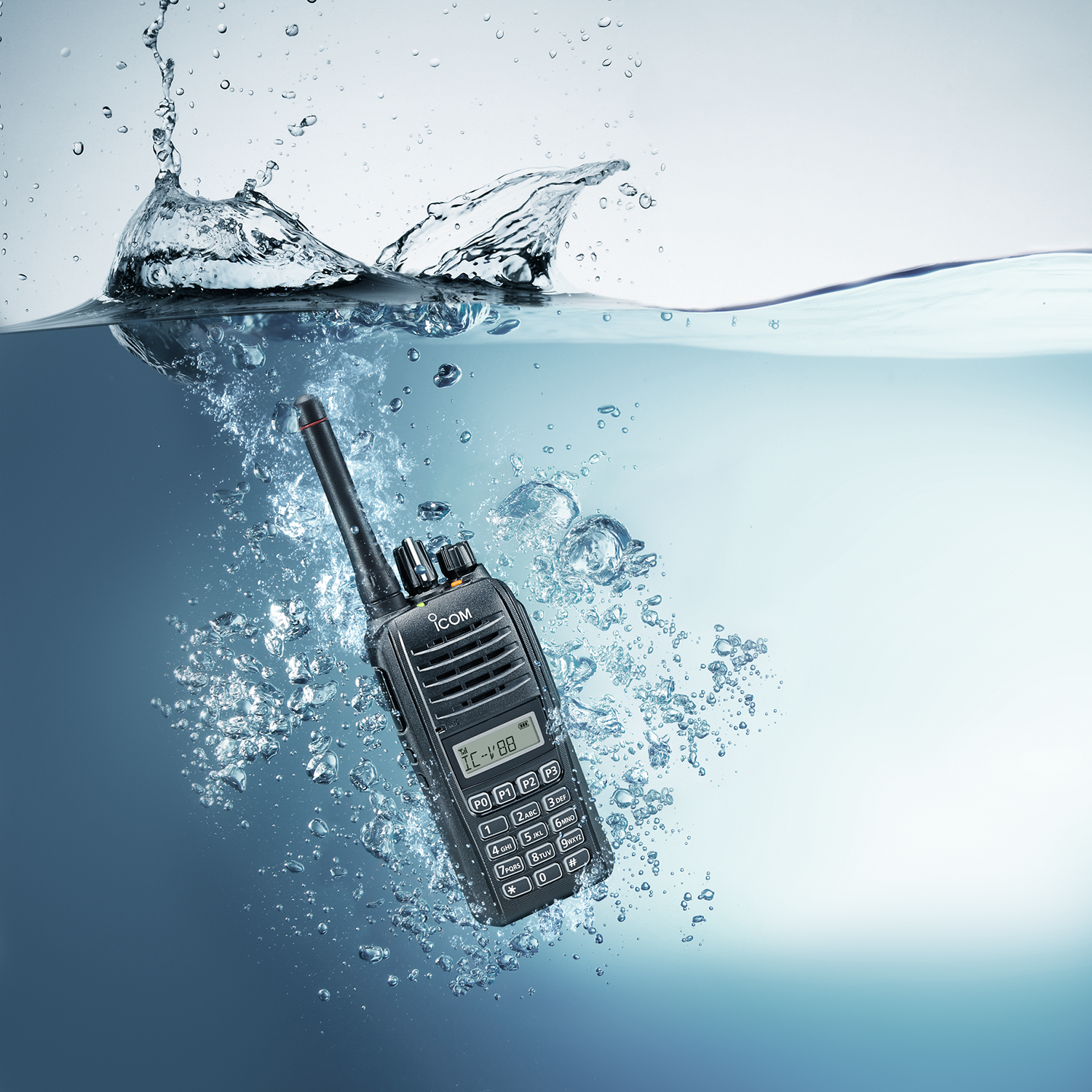

VHF Handheld Transceiver IC-V88
FEATURES:
-
Icom custom High power handling capacity speaker for 1500 mW powerful audio
-
IP67 Waterproof and dust-tight protection
-
5.5 W/4 W (VHF/UHF) of output power
-
Up to 10 hours of operating time with the supplied waterproof battery
-
Hands-free operation with the optional headset
- Built-in CTCSS and DTCS Encoder/Decoder
- 128 Memory Channels and Eight Zones
- Inversion Voice Scrambler (16 code) for Private Conversations
SPECIFICATIONS:
General
| IC-V88 | IC-U88 | ||
|---|---|---|---|
| Frequency coverage |
136MHz–174MHz |
335MHz–380MHz |
|
| Type of emission |
16K0F3E, 11K0F3E (25/12.5kHz) |
||
| Number of channels |
128 channels |
||
| Antenna impedance |
50Ω |
||
| Power supply requirement |
7.5V DC |
||
| Operating temperature range |
−30°C to +60°C (Radio only) |
||
| Frequency stability |
±2.5ppm |
||
| Current drain (approx.) |
Tx High | 1.5A | 1.3A |
| Rx Max. audio/Stand-by |
500 mA |
500 mA |
|
| Dimensions (W×H×D) (Projections not included) |
52.2×111.8×22.3 mm (with BP-278) |
||
| Weight |
230g (with BP-278) |
||
Transmitter
| IC-V88 | IC-U88 | |
|---|---|---|
| Output power (at 7.5V) |
5.5/2.0/1.0W |
4.0W/2.0W/1.0W |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow) |
|
| Spurious emissions |
70dB min. |
|
| Ext. microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ |
|
Receiver
| IC-V88 | IC-U88 | ||
|---|---|---|---|
| Sensitivity |
0.25μV typ. (at 12dB SINAD) |
||
| Squelch sensitivity |
0.25μV typ. (at threshold) |
||
| Adjacent channel selectivity |
76dB/53dB typ. |
73dB/56dB typ. |
|
| Intermodulation |
74dB typ. |
73dB typ. |
|
| Spurious response |
70dB min. |
||
| Audio output power | Internal SP |
1500 mW typ. (8Ω load) |
|
| External SP |
400 mW typ. (8Ω load) |
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω |
||
