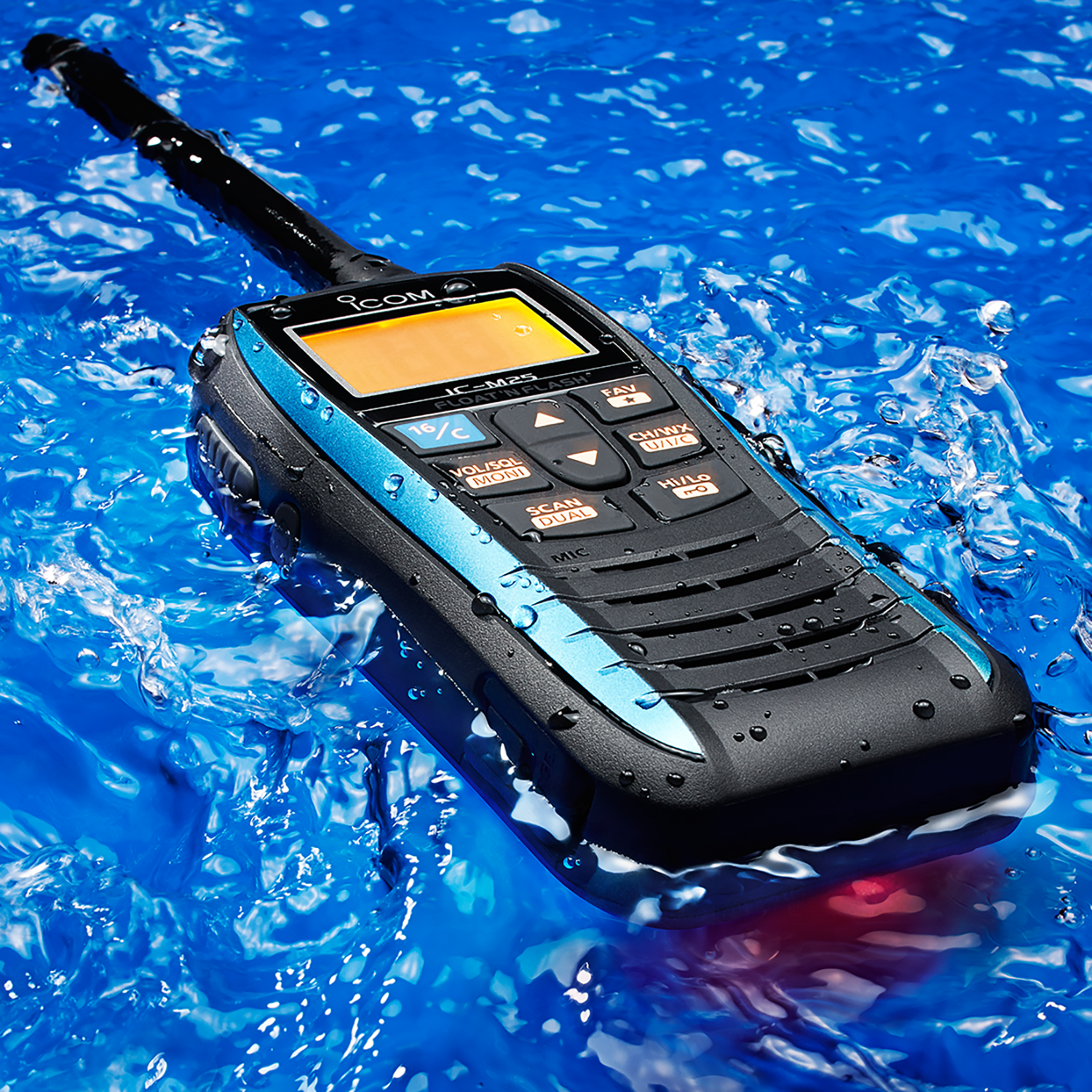

IC-M25 VHF MARINE TRANSCEIVER

---

FEATURES:

• Lightweight and Compact Body

• Float ’n Flash™

• 11 Hours of Battery Life

• 700 mW Audio Output

• USB Charging (Micro-B USB type)

SPECIFICATIONS:

General

Frequency range	TX	156.025–157.425 MHz
	RX	156.050–163.275 MHz
Usable channels		INT, USA, CAN, WX channels
Power supply requirement		3.7 V DC nominal
Type of emission		16K0G3E (FM)
Operating temperature range		–20°C to +60°C; –4°F to +140°F
Antenna impedance		50 Ω
Current drain (approx.)	TX	2.3 A
	RX (Internal SP/External SP)	400 mA/200 mA (Max. audio)
Dimensions (W×H×D) (projections not included)		56.6×134.2×30.5 mm; 2.2×5.3×1.2 in
Weight (approx.)		218 g; 7.7 oz (With antenna and MB-133)

Transmitter

Output power	5 W (approximate)/1 W
Spurious emissions	–68 dBc typical
Frequency stability	±10 ppm
Max. frequency deviation	±5.0 kHz
Adjacent channel power	70 dB
Residual modulation	40 dB

Receiver

Sensitivity		0.25 μV typical (at 12 dB SINAD)
Adjacent channel selectivityMain		70 dB typical
Intermodulation		70 dB typical
Squelch sensitivity		0.25 μV typical (at threshold)
Spurious response		70 dB typical
Audio output power (at 10% distortion)	Internal SP	700 mW typical (8 Ω load)
	External SP	300 mW typical (4 Ω load)
