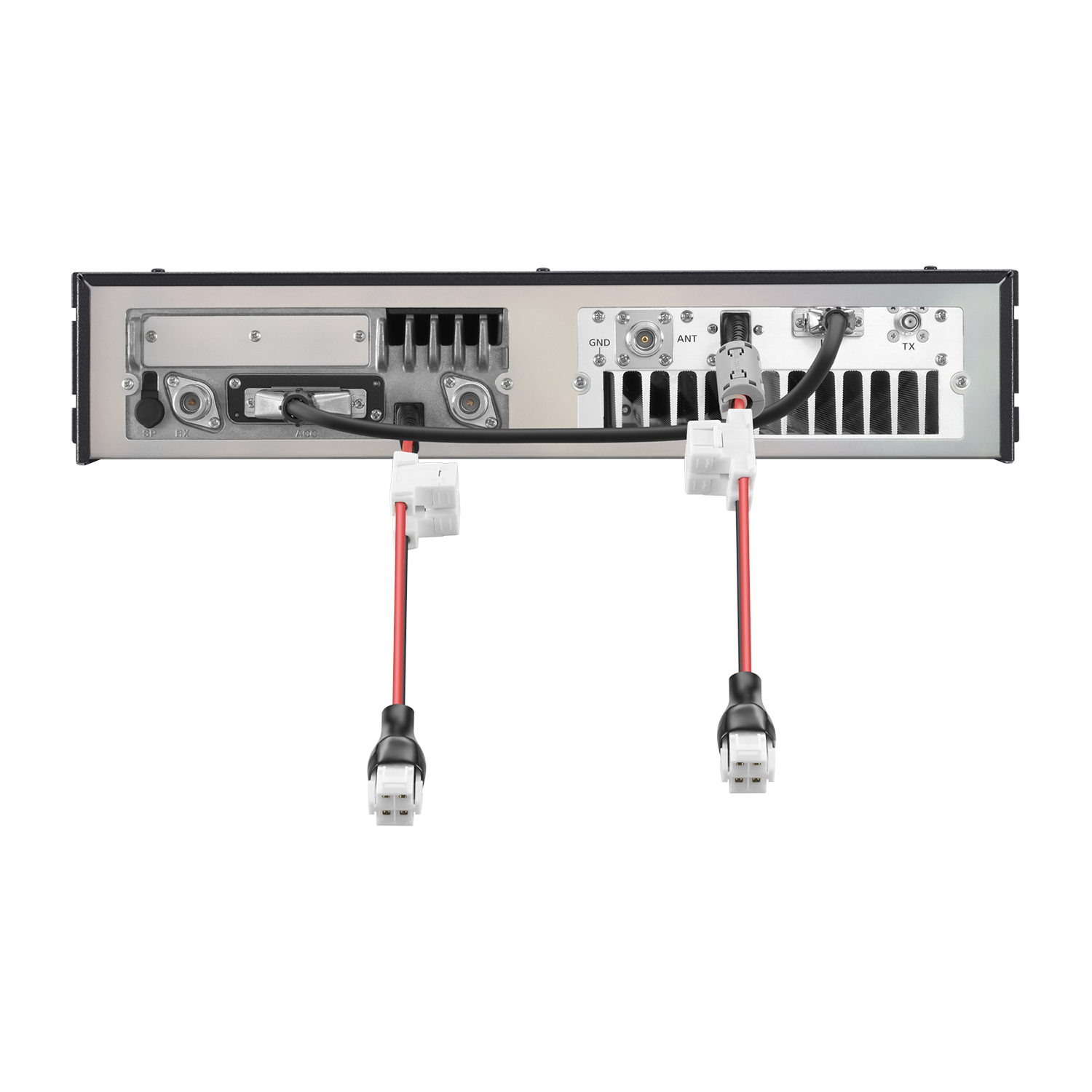

IC-FR5000 IDAS VHF AND UHF DIGITAL REPEATERS

---

FEATURES:

• Two RF Modules in One Unit

• 50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*

• 50W Output at 100% Duty Cycle or 100W 50% Duty Cycle Operation with Optional Power Amplifier*

• 19-inch Rack Mount Design, 2U Height Low Profile Design

• Multiple CTCSS and DTCS Tone Decode

• Base Station Operation

SPECIFICATIONS:

			IC-FR5000	IC-FR6000
Frequency coverage (Varies according to version)			136–174 MHz	400–470MHz
Type of emission			16K0F3E, 11K0F3E, 11K0F7E/D/W, 8K50F3E, 4K00F1E/D, 4K00F3E	16K0F3E, 11K0F3E, 11K0F7E/D/W, 4K00F1E/D, 4K00F3E
Number of channels			32 ch
Channel spacing (Varies according to version)			6.25/12.5/25 or 7.5/15/30 kHz
Dimensions (W×H×D) (projections not included)			483×88×260 mm 19.02×3.46×10.24 in
Power supply requirement			13.6V DC
Current drain (approx.)	Tx (High)		15 A
	Rx	Max	1.9 A
		Standby	500 mA, 400 mA (FAN, LCD backlight off)
Weight (approx.)			5.6kg; 12.3lb

Transmitter

		IC-FR5000	IC-FR6000
RF Output power (High)		50 W
Spurious emissions		80dB
Frequency stability		±0.5ppm
Audio harmonic distortion		1% typical 40% deviation
FSK error		5% max.
FM Hum and Noise		52dB typ. (W) 49dB typ. (N)	50dB typ. (W) 45dB typ. (N)

Receiver

		IC-FR5000	IC-FR6000
Sensitivity	12dB SINAD	0.22 μV typ.0.23 μV typ.
	20 dB SINAD (W/N)	–5.5/–2.5 dBμV emf typ.–5.0/–2.0 dBμV emf typ.
Adjacent channel selectivity (W/N)		78/56dB typ.
Spurious response rejection		90 dB typ.
Intermodulation rejection		78 dB typ.
AF output power (at 5% distortion)		4.0W (typ.) with a 4Ω load
