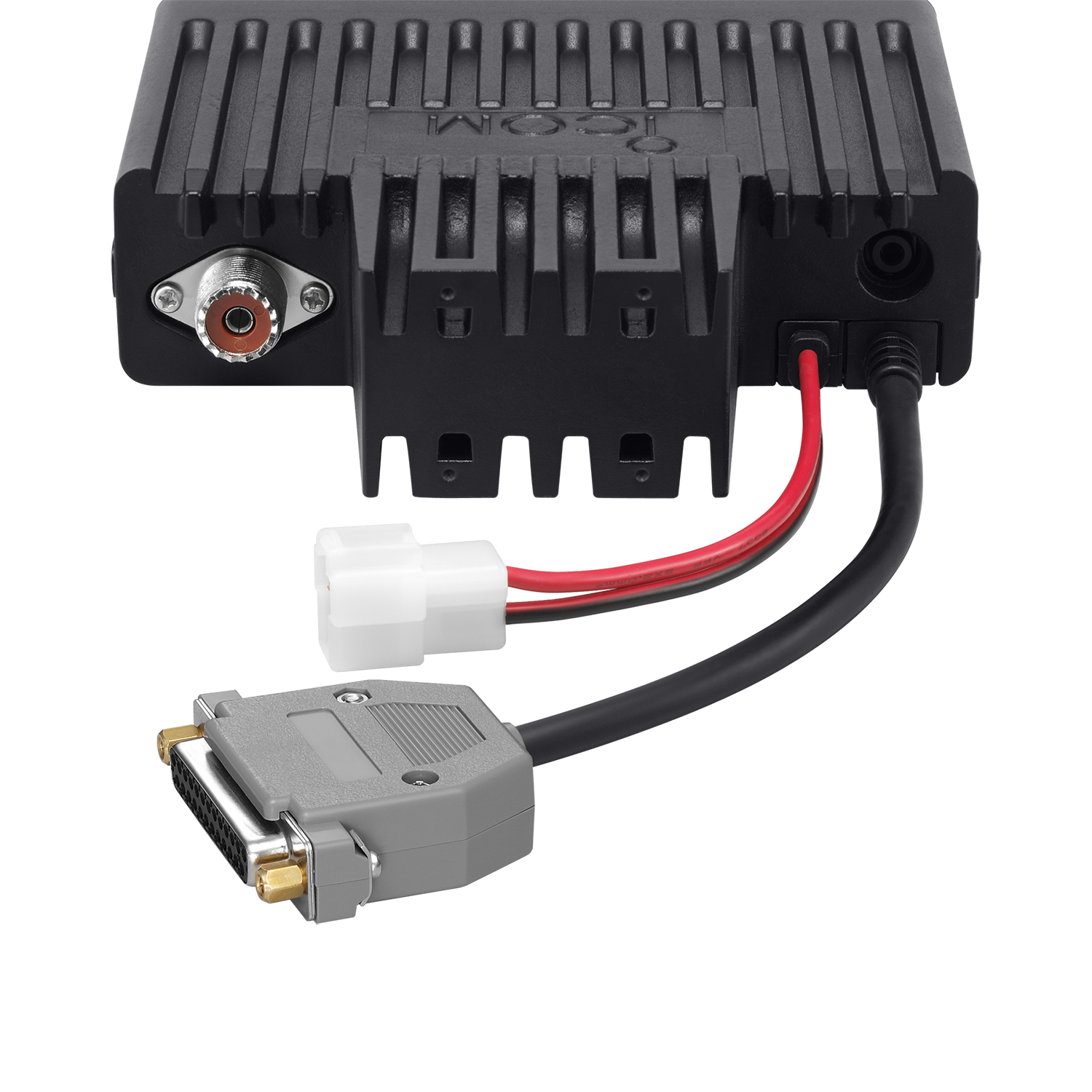

IC-F5123D VHF AND IDAS DIGITAL

---

FEATURES:

• 128 channels with 8 zones

• Built military rugged!

• Compact hand microphone

• Large programmable buttons

• Powerful, front-facing speaker

• Built-in 2-Tone and 5-Tone (Analog mode)

SPECIFICATIONS:

General

			IC-F5123D	IC-F6123D
Frequency coverage			136–174 MHz	350-400MHz 400-470MHz 450-512MHz
Dimensions (projections not included; W×H×D)	50W/45W version		150×40×167.5 mm; 5.91×1.57×6.59 in
	25W version		150×40×117.5 mm; 5.91×1.57×4.63 in
Number of channels			128 channels (8 zones)
Channel spacing			6.25/12.5/25kHz
Type of emission			16K0F3E, 8K50F3E, 4K00F1E/F1D
Current drain (approx.)	Tx	50W/45W	10 A	11 A
		25W	5 A
	Rx	Stand-by	300 mA
		Max. audio	1.2 A
Weight (approx.)			1.5 kg; 3.3 lb

Transmitter

		IC-F5123D	IC-F6123D
RF output power	50W/45W version	50W, 25W, 5W (Hi, L2, L1)	45W, 25W, 5W (Hi, L2, L1)
	25W version	25W, 10W, 2.5W (Hi, L2, L1)	25W, 10W, 2.5W (Hi, L2, L1)
Frequency stability		±1.0ppm
Audio harmonic distortion		3% typical 40% deviation
Spurious emissions		70dB (min.)
FM Hum and Noise		46/40dB typ. (Wide/Narrow)

Receiver

		IC-F5123D				IC-F6123D
Sensitivity		0.25μV typ. (at 12dB SINAD) 0.18μV typ. (at 5% BER)
Adjacent channel selectivity		80/70dB typ. (W/N), 65dB typ. (digital)				75/65dB typ. (W/N), 60dB typ. (digital)
Spurious response rejection		70dB min.
Intermodulation rejection		75dB typ. (W/N), 70dBμV emf type. (digital)
AF output power (at 5% distortion with an 4Ω load)		4W (typ.)
