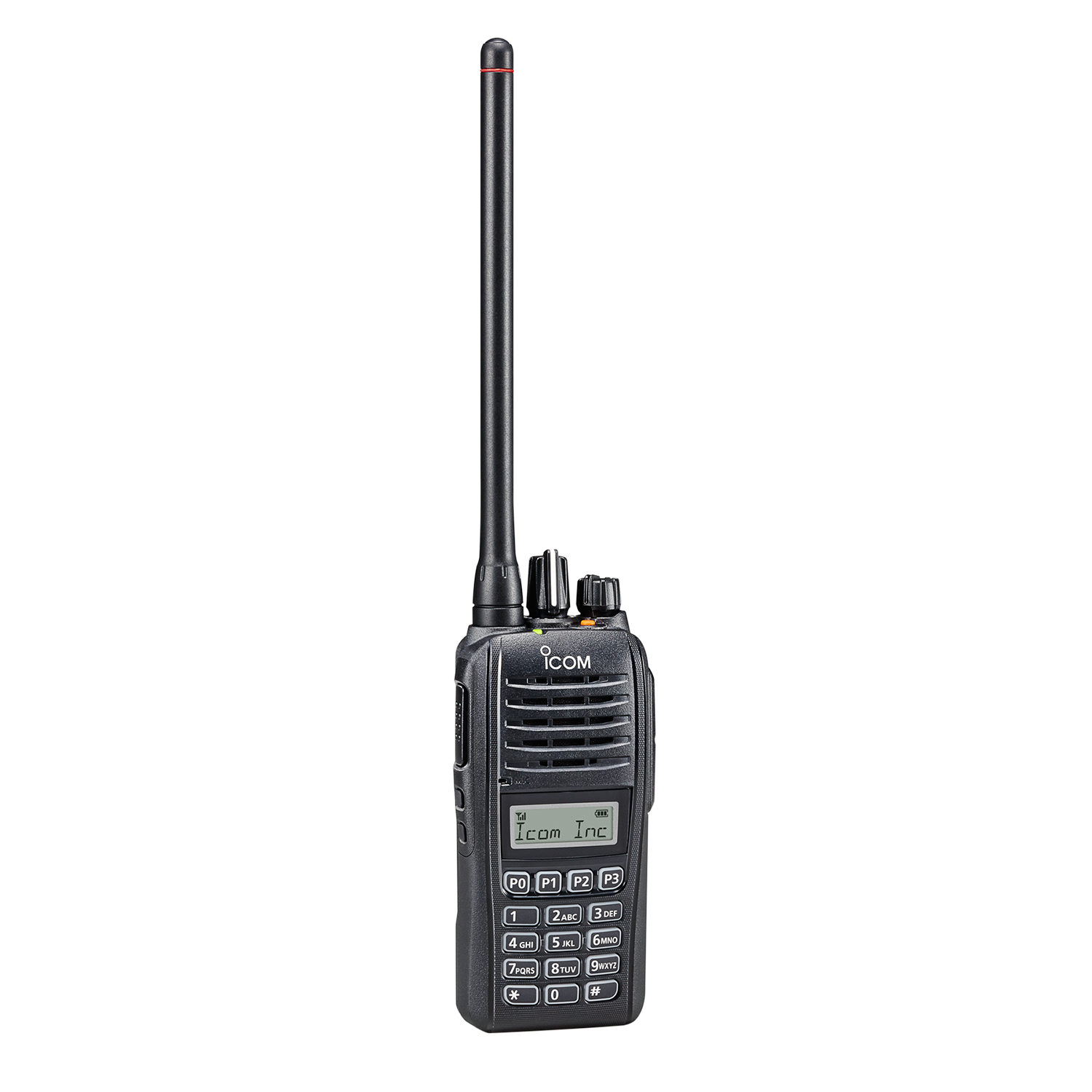

IC-F2000 UHF HANDHELD TRANSCEIVER

---

FEATURES:

• Icom Custom High Power Handling Capacity Speaker for 1500 mW Powerful Audio

• Compact, Waterproof Durable Design (IP67 and MIL-STD-810-G)

• Enhanced Emergency Safety with Built-in Motion/Stationary Detection Sensor

• 128 Channel Capacity with Eight Zones (Simple Type and Ten-Key Type)

• Built-in 2-Tone, 5-Tone, CTCSS and DTCS

• MDC and BIIS Compatible

• 16-Code Inversion Voice Scrambler

• Man Down and Lone Worker Functions

• Compact (52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in) and lightweight (240 g; 8.5 oz with BP-279)

• 16-code inversion voice scrambler

• MDC PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), Revive (RX)













SPECIFICATIONS:

General

		IC-F1000T/S	IC-F1000T/S	IC-F2000T/S	IC-F2000T
Frequency coverage* (*Varies according to version)		136–174 MHz		400–470 MHz (USA/EUR/EXP) 450–512 MHz (USA) 450–520 MHz (EXP)
Number of channels		128 channels/ 8 zones	16 channels	128 channels/ 8 zones	16 channels
Type of emission* (*Depending onversion)		16K0F3E*/11K0F3E (USA/EXP)
		16K0F3E/14K0F3E/8K50F3E (EUR)
Power supply requirement		7.5V DC nominal
Current drain (approx.)	TX	1.3 A
	RX	500 mA /77 mA (Max. audio (internal SP)/Standby)		500 mA /80 mA (Max. audio (internal SP)/Standby)
Antenna impedance		50Ω
Operating temperature range		–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)
Dimensions (W x H x D; Projections not included)		52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)
Weight (approx.)		240 g; 8.5 oz (With BP-279)
