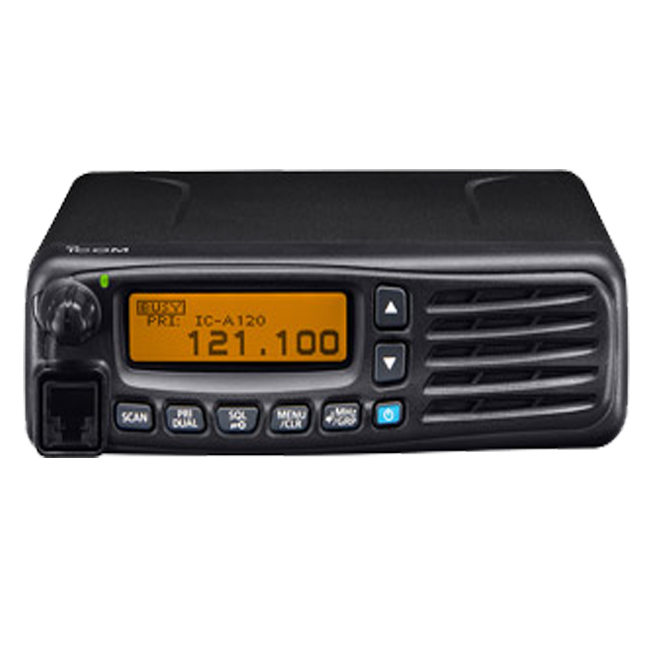

IC-A120 VHF Air Band Transceiver

---

FEATURES:

• High Visibility, Simple Operation

• Active Noise Cancelling (ANC)

• IP54 Dust-Protection and Water Resistance

• Dualwatch and ON-Hook Scan Functions

• Side Tone Function

SPECIFICATIONS:

General

Frequency range (TX/RX)			118.000–136.992 MHz
Channel spacing			25 kHz/8.33 kHz
Dimensions (W×H×D) (projections not included)			161×45×175 (mm) 6.34×1.77×6.89 (in) (approximately)
Power supply requirement			13.75 V/27.5 V DC
Operating temperature range			–30°C to +60°C; –22°F to +140°F
Type of emission			6K00A3E, 5K60A3E (FCC/EXP) 6K00A3E (Industry Canada)
Frequency stability			±5 ppm (–30°C to +60°C)
Antenna connector			SO-239 (50 Ω)
Number of memory channels			200 channels
Current drain (approx.)	Tx (High)		5.0 A (maximum)
	Rx	Max	0.5 A
		Standby	4.0 A
Weight (approx.)			1.5 kg; 3.3 lb (main unit)

Transmitter

Output power (at 13.75 V) (Carrier Power)		9.0 W typical 10.0 W maximum
Spurious emissions		Less than –60 dBc
Modulation		70% to 100%
Microphone impedance		600 Ω

Receiver

Selectivity	8.33 kHz	2.778/7.37 kHz (6 dB/60 dB)
	25 kHz	8/25 kHz (6 dB/60 dB)
Intermediate frequencies		38.85 MHz/450 kHz (1st/2nd)
Spurious response rejection		More than 74 dBμ
Audio output power (at 10% distortion, 60% modulation)	Internal SP (8 Ω load)	1.5 W typical
	External SP (8 Ω load)	More than 10 W
	Headphone (500 Ω load)	More than 100 mW
Sensitivity (at 6 dB S/N)		Less than 1 μV
