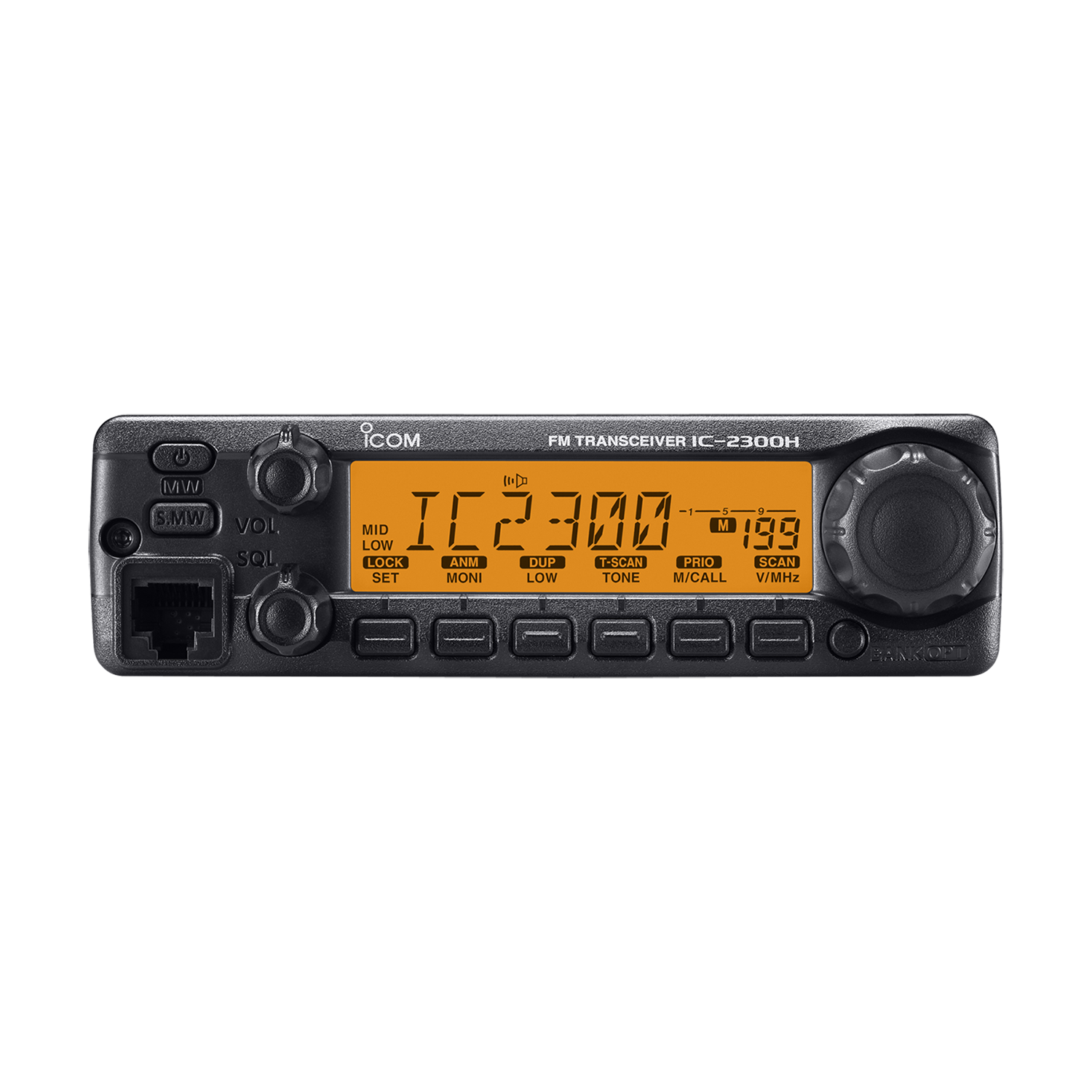

IC-2300H 144MHz FM Transceiver with HM133V Hand Microphone

---

FEATURES:

• Stable 65 W of Output Power*

The IC-2300H can generate 65W of output power. The rugged aluminum diecast provides effective heat dissipation and keeps RF output even during high duty cycle continuous transmission.

• A Total of 207 Memory Channels

The IC-2300H has a total of 207 memory channels, including 200 regular channels, 6 scan edges and 1 call channel. The channel name is programmable with 6 characters for easy recognition.

• Built-in CTCSS and DTCS Encoder/Decoder

The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The tone scan function detects the subaudible tone that is used for repeater access. The pocket beep function gives you an audible and visual indicator of an incoming call.
The DTCS encoder function (DTCS transmit only) is also available.

• Simple Operation

The IC-2300H retains the basic panel layout and its user interface from the IC-2200H. A 70.6×20 mm LCD display offers a good viewing angle suitable for mobile operation. The bottom of the display indicates the available functions of the front panel buttons directly below the display.

• Multiple Scan Functions

The IC-2300H supports various scan types for maximum reception and ease of use. The DMS (Dynamic Memory Scan) system allows you to scan selected banks from 10 memory banks by simply adding and deleting bank links.

• Tested to the MIL-STD 810 G Specifications

The IC-2300H is built tough to protect from a rough road. It has been tested to and has passed the latest MIL-STD 810 G specifications including shock, vibration and temperature tests.

 Click for Brochure

SPECIFICATIONS:

General

Number of channels			207 channels (including 6 scan edges, and 1 call)
Type of emission			F2D, F3E (FM)
Power supply requirement			13.8 V DC ±15%
Current drain	Tx (65 W)		11 A
	Rx	Stand-by	0.4 A
		Max. audio	1.5 A
Antenna impedance			50 Ω (SO-239)
Operating temperature range			–10°C to +60°C; 14°F to +140°F
Dimensions (projections not included; W×H×D)			140×40×162 mm; 5.5×1.6×6.4 in
Weight (approx.)			1.1 kg; 2.43 lb



Transmitter

Output power* (at 13.8 V DC)		65 W, 25 W, 10 W, 5 W
Max. frequency deviation	Wide	±5.0 kHz
	Narrow	±2.5 kHz
Spurious emissions		Less than –60 dBc
Frequency stability		±3 ppm
Microphone impedance		600 Ω (8-pin modular)



Receiver

Intermediate frequencies		46.35 MHz/450 kHz
Sensitivity at 12dB SINAD		Less than 0.18 μV
Adjacent channel selectivity	Wide	More than 6 kHz (at 6 dB) Less than 14 kHz (at 60 dB)
	Narrow	More than 3 kHz (at 6 dB) Less than 9 kHz (at 55 dB)
Spurious response rejection		More than 60 dB
Audio output power		4.5 W typ. (10% dist. 4 Ω load)
External speaker connector		2-conductor 3.5 (d) mm (1⁄8?)/4 Ω

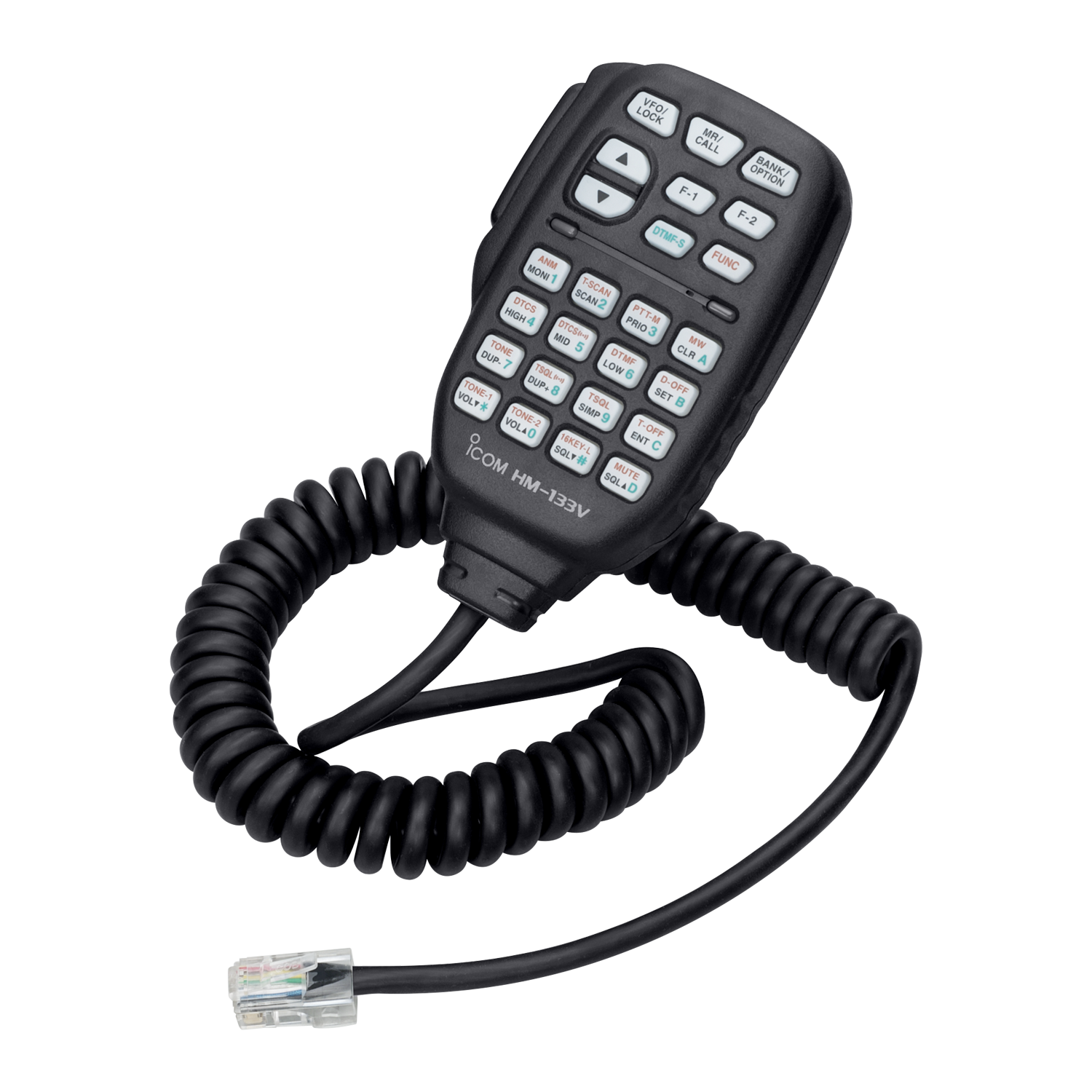

HM-133V

Connector information	Modular connector
Waterproof	N/A
Cable Length	580 mm;  22.8 in  (when curled)
Weight	140 g
