SILVER LCD RADAR 7" Model 1715
The MODEL 1715 is a high contrast LCD radar designed for pleasure craft and small fishing boats. Radar echoes are presented in four shades of gray on the 7 Silver Bright LCD.
FEATURES:
-
High Contrast 7" Silver Bright LCD
-
14 range scales from 0.125 to 24 nm
-
Low power consumption 8 Watts in Watchman mode
-
Dual bandwidth IF amplifier : broad band for high definition in short ranges, narrow band for enhanced detection in long ranges
-
Variable antenna speeds with range scales for optimum performance on all ranges
-
Cursor position can be read in L/L (GPS navigator is required)
-
Programmable Navigation Data repeater feature
-
Zoom in to a specific area
-
Reverse video feature for effective use at night
SPECIFICATIONS:
| Antenna Size |
18 inches |
| Antenna Type | Radome |
| Band |
X-Band |
| Display Size |
7 inches |
| Display Type |
Mono LCD |
| Beam Width | 5.2 degrees |
| Power Usage |
12-24 VDC |
| Power Output |
2.2 kW |
| Range |
24 nm |

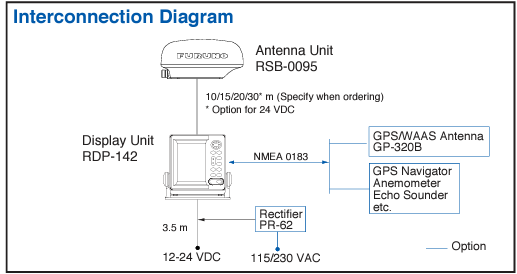

Interconnection Diagram
