OPEN RADAR SENSOR 4' OR 6' DRS25A

---

FURUNO has taken its NMEA award-winning radar technology to the next level with Ultra High Definition Digital Radar. UHD™ offers crystal clear, noise-free target presentation with automatic real-time digital signal processing. Antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length. Commercial-grade radar performance is now available in the ultimate MFD navigation suite.

FEATURES:

• Enhanced target detection, both short and long range

• Minimum detection range of 20 m approx.

• Fast Target Tracking™, display up to 30 targets simultaneously

• Instant target vectors show heading and speed info with Fast Target Tracking™

• Bird Mode, track birds to find the best fishing grounds

• New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor

• Choose antenna size from 3.5', 4' or 6'

• Moving targets (vessels and birds) display targets trails for easy identification

• Spot flocks of birds far away, incredible performance without compromise

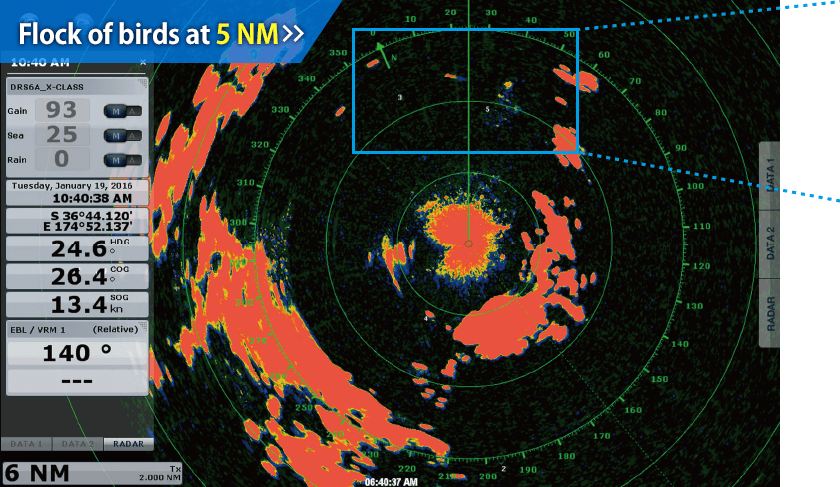

Bird echoes at 5 NM, the echoes can be distinctly separated from the nearby vessel in motion. The vessel shows a straight and clear echo trail, unlike the bird echoes that are identifiable by their random motion.

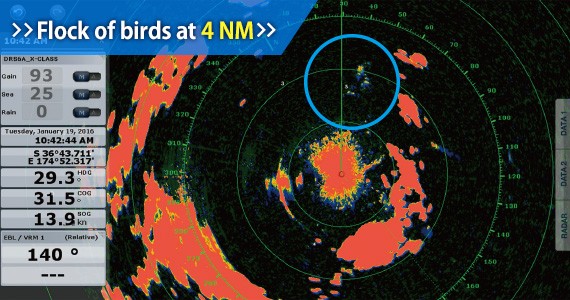

At 4 NM the bird echoes are extremely clear, and distinctly visible compared with other targets.

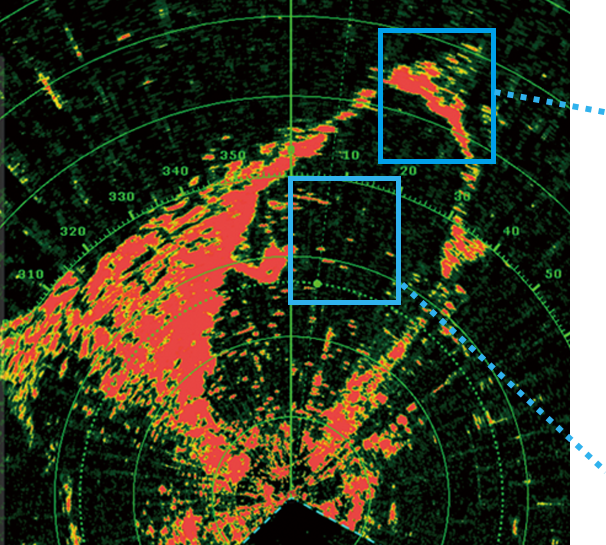

• Impressive long range performance

With an excellent long range performance, you can even spot land masses in detail at great distances.

Osaka Harbor, Japan

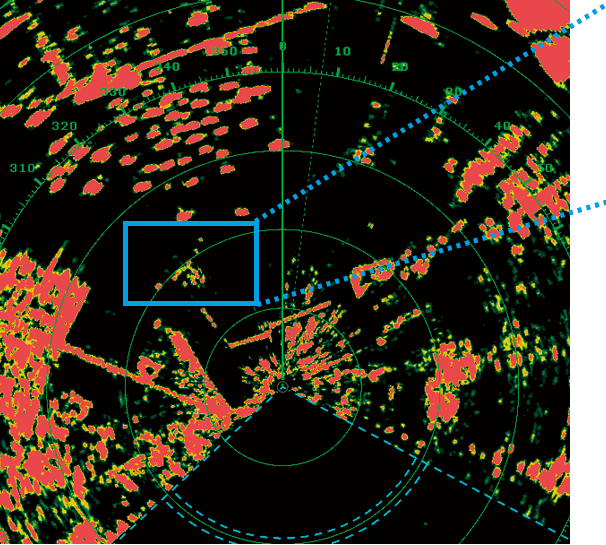

• Excellent target separation at short range

Improved short range detection gives you unprecedented target separation for use in identifying hazardous targets.

Small sailing dinghies



Click for Brochure

SPECIFICATIONS:

Antenna Size	4 ft or 6 ft
Antenna Type	Open Array
Band	X-Band
Display Size	Supplied Separately
Display Type	Supplied Separately
Beam Width	1.9 degrees or 1.4 degrees
Power Usage	48 VDC
Power Output	25 kW
Range	96 nm

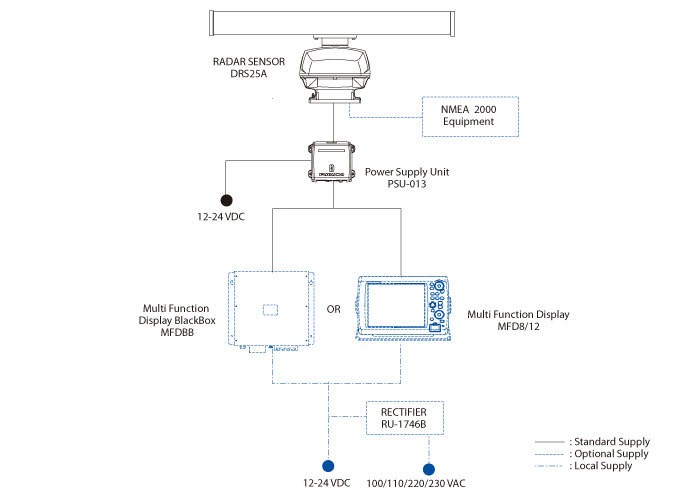

Interconnection Diagram
