OPEN RADAR SENSOR 4' OR 6' DRS12A
FURUNO has taken its NMEA award-winning radar technology to the next level with Ultra High Definition Digital Radar. UHD™ offers crystal clear, noise-free target presentation with automatic real-time digital signal processing. Antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length. Commercial-grade radar performance is now available in the ultimate MFD navigation suite
FEATURES:
-
Uses a 4' Open Array Antenna (supplied separately)
-
Antenna rotation speed adjusts automatically to appropriate pulse length
-
Noise free radar presentation provided by real-time digital auto gain/sea/rain controls
-
PSU012 Power Supply Unit is required option for use with MFD8, MFD12, TZT9 or TZT14
-
Simultaneous scanning technology displays 2 separate radar ranges on your NavNet 3D display at the same time
-
Gearbox incorporates a Network port to which certain Furuno network sensors; including the WS200 Wind Sensor, SC30 Satellite Compass and GP330B GPS Receiver, can be directly connected.
SPECIFICATIONS:
General
Antenna Size |
4 ft or 6 ft |
| Antenna Type |
Open Array |
| Band |
X-Band |
| Display Size |
Supplied Separately |
| Display Type |
Supplied Separately |
| Beam Width | 1.9 degrees or 1.4 degrees |
| Power Usage | 12-24 VDC - PSU required |
| Power Output |
12 kW |
| Range |
72 nm |

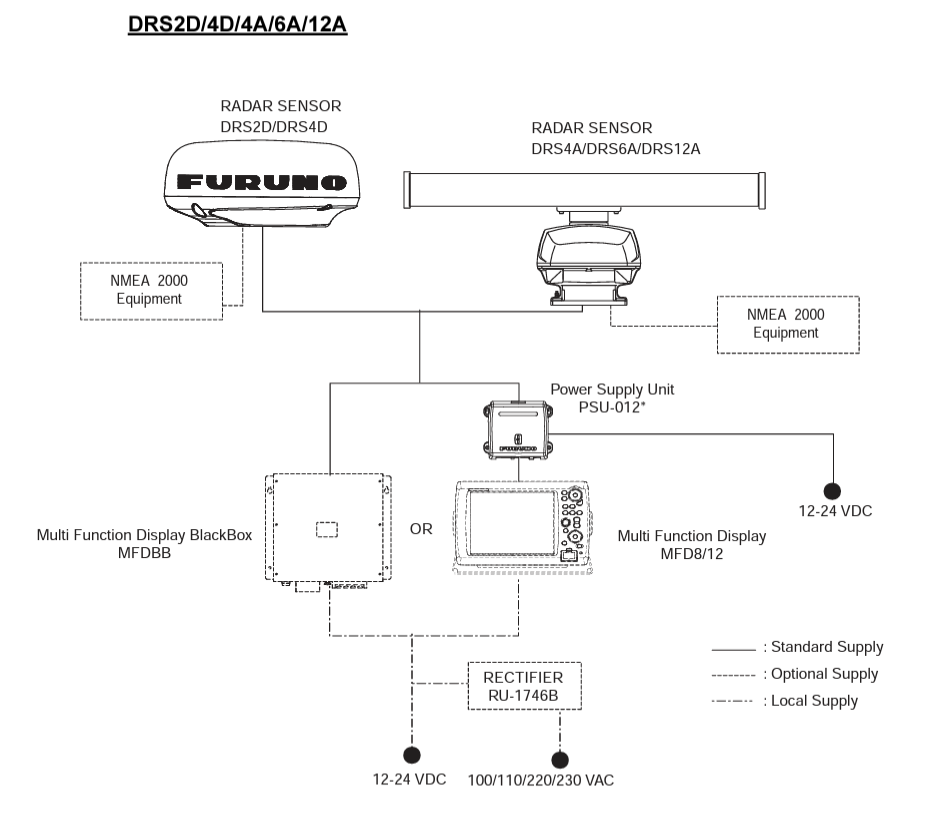

SYSTEM CONFIGURATION
