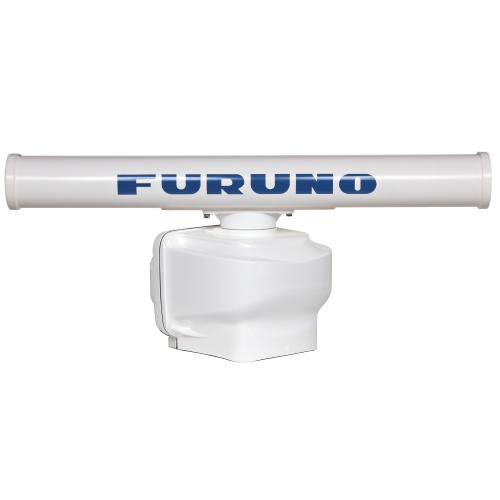

Open Radar Sensor 3.5' OR 6' DRS6A X-CLASS

---

FEATURES:

• Enhanced target detection, both short and long range

• Minimum detection range of 20 m approx.

• Fast Target Tracking™, display up to 30 targets simultaneously

• Instant target vectors show heading and speed info with Fast Target Tracking™

• Choose antenna size from 3.5', 4' or 6'

• New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor

• Spot flocks of birds far away, incredible performance without compromise

• Impressive long range performance

• Excellent target separation at short range

SPECIFICATIONS:

GENERAL

Antenna	XN10A : 1016 mm (3'5) XN12A : 1255 mm (4') XN13A : 1795 mm (6')
Peak Output Power	6kW
Antenna Rotation Speed	24/36/48 rpm range coupled or 24 rpm fixed
Beam Width	XN10A : Horizontal 2.3° Vertical 22° XN12A : Horizontal 1.9° Vertical 22° XN13A : Horizontal 1.4° Vertical 22°
Range Scales	0.0625 to 96 NM
Temperature	-25°C to + 55°C
Waterproofing	IP56
Weight	20 kg (XN10A), 21 kg (XN12A), 23 kg (XN13A)
Power Supply	24 VDC 4.0 A
