NavNet TZtouch2 15.6" Multi Function Display NAVNET TZTL15F
NavNet TZtouch2 features a graphical user interface that has been renewed and refined, focusing on usability and ease of operation. With a sleek all glass front, refined graphical user interface, built-in RezBoost™ Fish Finder, and internal GPS antenna, NavNet TZtouch2 is a beauty to behold and use.
FEATURES:
-
RezBoost™
Rezboost™ is a revolutionary new technology utilizing FURUNO's advanced digital signal processing to provide fantastic resolution without having to change your transducer.Every NavNet TZtouch2 display has a built-in Fish Finder that is dual-frequency (50/200kHz), and has a 600W/1kW power output. With TZtouch2, Furuno is introducing a new, proprietary Fish Finder technology, called RezBoost™.
-
Simply refined, simply beautiful
Following in the footsteps of the original NavNet TZtouch, TZtouch2 features a refined user interface that is all about usability. Whether you are searching for hot fishing grounds, plotting your next route, using your Radar to navigate through the fog, you can expect smooth operation with familiar touch gestures.
-

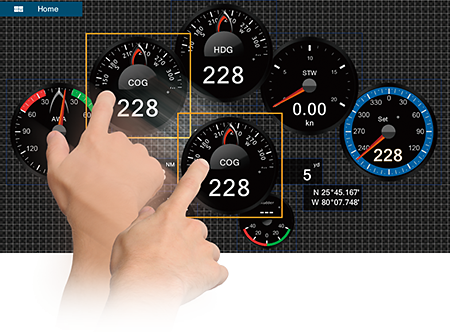

Instruments - Fully Customizable
The instrument page is impressive just on its own rights, but where it really shines is it's customizability. No matter if it is for navigation, engine and tank monitoring, autopilot control, or a combination, data can be displayed according to your personal tastes and needs.
-
Wireless Hotspot Connectivity
With an internet connection NavNet TZtouch2 can wirelessly access real-time weather data, Cloud data services and more
-
IOS and Android Apps
View information from your NavNet TZtouch2 and control it on your IOS and Android devices
SPECIFICATIONS:
DISPLAY UNIT |
|
| Type | Color TFT multi touch LCD |
| Screen Size |
15.6" Wide |
| Screen Resolution | FWXGA 1366 x 768 |
| Screen Brightness |
1000 cd/m2 (typical) |
| Language |
Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish |
GPS/WAAS |
|
| Receiver Type |
GPS: 56 channels, SBAS: 1 channel (C/A mode, WAAS) |
| Receiving Frequency |
L1 (1575.42 MHz) |
| Time to First FIX |
100 s (cold start) |
| Tracking Velocity |
999 kn |
| SBAS |
WAAS, EGNOS, MSAS |
ACCURACY |
|
| Internal Antenna | GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max |
CHART PLOTTER |
|
| Cartography |
MapMedia mm3d chart (C-MAP/Navionics/NOAA) |
| Memory Capacity |
30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route) |
| Alarms |
Anchor Watch, XTE, Proximity, Depth, Temperature, Speed, etc. |
RADAR |
|
| Display Modes |
Head-up, North-up* *Heading input required. |
| Echo Trail |
Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous |
| Target Tracking | 30 Targets*, 100 Targets (with DRS-NXT Series) *Heading input required. |
FISH FINDER (Built-in) |
|
| Transmit Frequency | 50/200 kHz |
| Transducer |
600 W or 1 kW* *Matching box MB-1100 required for some FURUNO transducers. |
| Modes |
RezBoost™, ACCU-FISH™, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising), Bottom Zoom, Bottom Lock |
INTERFACE |
|
| CAN bus/NMEA2000 |
1 Port |
| Interface (CAN bus/NMEA2000) | Input Output |
| NMEA0183 |
1 Integrated Output Port |
| Interface (NMEA0183) |
Output |
| LAN |
1 Port (100BASE-TX) |
| USB |
1 Port (USB2.0) |
| Video I/O |
Input: 2 Ports (NTSC/PAL), Output: 1 Port (HDMI) |
| AUX I/O |
1 Port (External Event/MOB Input/Operator Fitness/Alarm Output) |
| SD Card |
Slot 1 Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option) |
| Wireless LAN |
IEEE802.11b/g/n, Transmit frequency: 2.4 GHz band |
| Transducer |
1 Port |
ENVIRONMENT |
|
| Temperature (IEC60945) |
-15°C to +55°C |
| Waterproofing |
IP56 |
| POWER |
12-24 VDC 3.6-1.8 A |
