AUTOPILOT NAVpilot-1000

---

FEATURES:

• Steering Straight with AUTO Mode

• HCS Type-Approved

• Easy to Read and Robust Controls

• Easily Follow Routes with NAV Mode *

SPECIFICATIONS:

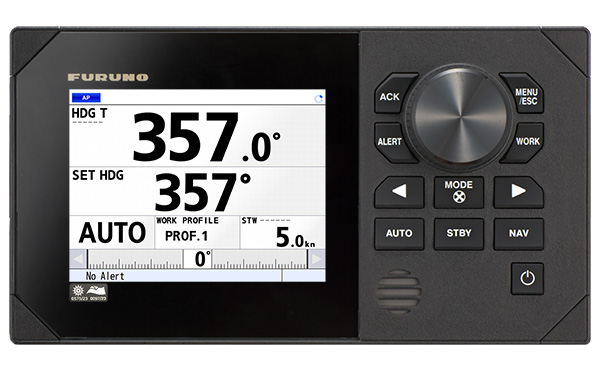

Control Unit

Display	5.7" Color LCD
Effective Display Area	115.2 (W) x 86.4 (H) mm
Pixel Number	VGA (640 x 480)
Backlight	720 cd/m²
Visible Distance	0.62 m nominal
Max. number of units in a network	6 units (requires external 9-16 V power source and isolator for connection of 4 or more units)

Processor Unit

Steering Modes	STBY, AUTO, Advanced AUTO, NAV * ¹(Standard/Precision), FU-RC * ², NFU-RC * ¹ * ², FU-KEY* ², NFU-KEY* ², DISENGAGED (FU/NFU: Follow-Up/Non-Follow-UP, RC/KEY: remote/keyboard control) *1: Non-IMO mode only, *2: Available only when the RRU is installed.
Rudder Gain	Auto / Manual
Counter Rudder	Auto / Manual
Trim Gain	Auto / Manual
Alarm	Heading monitor, Watch, Off heading
Rate of Turn	0.1-10 deg/s
Rudder Angle Settings	±45 deg
Rudder Control (Analog)	Voltage: 0 to 5 V (min.), -10 to +10 V (max.) (5 mA max.) Current: 4 to 20 mA (load resistance 500 ohm max.)
Solenoid Control for Rudder On/Off	Isolation: Galvanic/non-galvanic isolation Connection: Common negative Load range: 3 A max.
Clutch / Bypass Drive for Rudder	Isolation: Galvanic/non-galvanic isolation Connection: Common negative Load range: 3 A max.

Interface

Ports

Serial: 4 ports, I/O, IEC61162-1 Ed.3 to 5, NMEA0183 Ver1.5/2.0, 4800/38400 bps LAN: 1 port, Ethernet 100Base-TX, IEEE802.3 data link, IGMPv2 acceptable NMEA2000: 1 port, for control unit Universal Output: 6 ports (dry contact), alarm/status: 100 mA max. Universal Input: 4 ports (dry contact) Power Failure: 1 port, 12-24 V: 100 mA max. Changeover Switch: 1 port (input) USB: 1 port, USB 2.0, for maintenance

Environmental

Ambient Temperature	−15 °C to +55 °C (storage: -30°C to 70°C)
Relativity Humidity	93% or less at +40°C
Waterproofing	Processor Unit: IP22 Control Unit: IP22

Others

Power Supply	Processor Unit: 12-24 VDC (10.8-31.2 V): 4.0-2.0 A (Control Unit: 3 units)

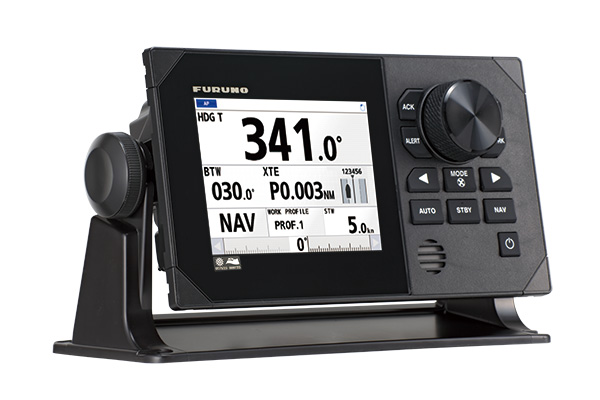

Size	Processor Unit: 397.? (H) x 440 (W) x 100 (D) mm Control Unit: (DECK MOUNT) 164 (H) x 277 (W) x 112 (D) mm , (FLUSH MOUNT) 144 (H) x 262 (W) x 80 (D) mm
Weight	Processor Unit:6.0 kg Control Unit: (DECK MOUNT) 1.2 kg , (FLUSH MOUNT) 0.95 kg
