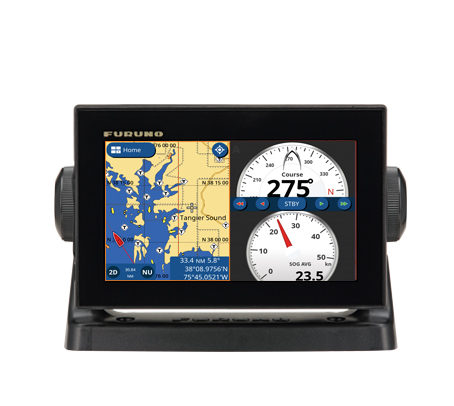

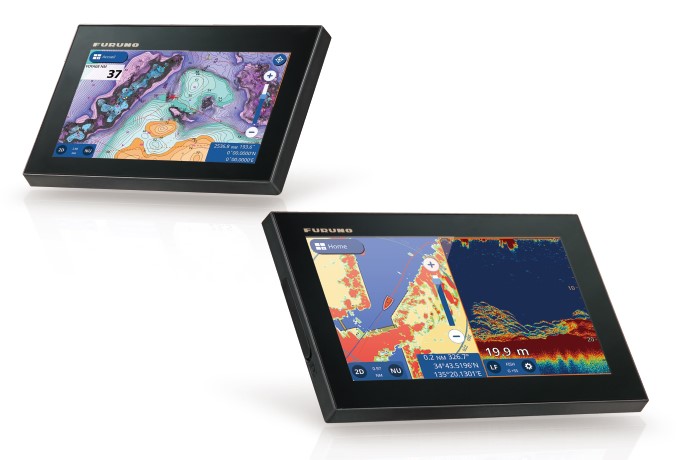

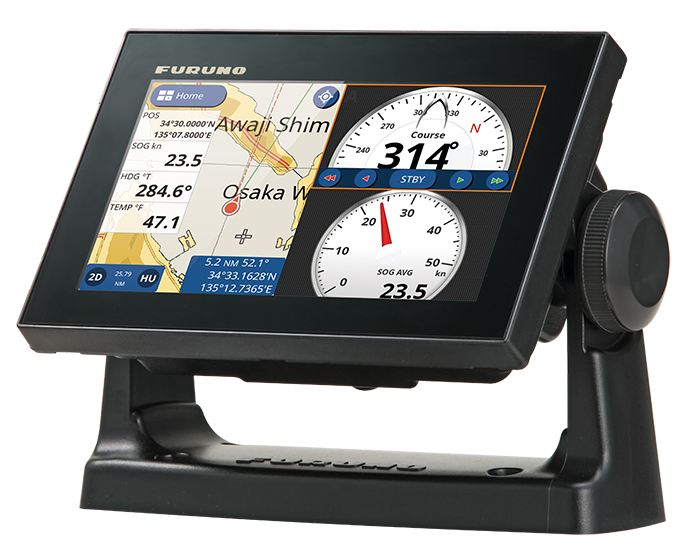

GPS OR WAAS CHART PLOTTER with built-in CHIRP FISH FINDER GP-1871F

---

SPECIFICATIONS:
General

Screen Type	GP-1871F: 7" Wide Color TFT LCD
Screen Resolution	WVGA 800 x 480 pixels
GPS Antenna	Internal Antenna
Display Modes	Chart Plotter, Fish Finder, Radar (connection to the 1st Watch Wireless Radar DRS4W required), AIS (connection to AIS sensor required), Instruments (Nav Data, Engine, Wind, Fuel tank), Autopilot (connection to the FURUNO NAVpilot-300 or 700 series required)
Language	English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese.



GPS / SBAS (WAAS/EGNOS/MSAS)

Receiving Type	GPS 72 channels WAAS 1 channel
Receiving Frequency	L1 (1575.42 MHz)
Accuracy	GPS: 10 m Max, WAAS: 5 m Max, MSAS: 7.5 m Max

PLOTTER

Chart	C-MAP 4D and Navionics Charts
Memory Capacity	30,000 points for ship's track and waypoints 1,000 planned routes (Max. 250 points per route) 5,000 quickpoints

FISH FINDER

Frequency	CHIRP: 40 to 225 kHz CW: 50/200 kHz
Transducer	300 W or 600 W or 1 kW (Transducer dependent)
Range	5-1, 200 m, shift :0-500 m
Modes	TruEcho CHIRP™*, RezBoost™**, ACCU-FISH™**, Bottom Discrimination**, Dual Frequency**, Dual Range** Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock * CHIRP dedicated transducer required ** Dual frequency CW compatible transducer required



Interface

NMEA2000	1 port (Interface CAN bus) Input: 126992, 127245, 127250, 127251, 127258, 127488, 127489, 127493, 127497, 127505, 128259, 128267, 128275, 129025, 129026, 129029, 129038, 129039, 129040, 129041, 129284, 129285, 129538, 129540, 129793, 129794, 129798, 129808, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130577, 130578, 130830, 130831, 130832, 130880 Output: 126992, 127245, 127250, 127251, 127257, 127258, 127505, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129283, 129284, 129285, 130306, 130310, 130312, 130316, 130830, 130831, 130832
NMEA0183	1 port Input: DBT, DPT, DSC, DSE, GGA, GLL, GNS, HDG, HDT, MTW, MWV, RMC, ROT, RSA, THS, TLL, VBW, VDM, VHW, VTG, ZDA, PFEC (GPatt/SDmrk/SDtbd/SDtfl/pireq) Output: AAM, APB, BOD, BWR, DBT, DPT, GGA, GLL, GNS, GSA, GSV, GTD, HDG, HDT, MTW, MWV, RMB, RMC, RTE, THS, TLL, VHW, VTG, WPL, XTE, ZDA, PFEC (SDmrk/SDtbd/SDtfl/pidat)
Other	Micro SD Card Slot x 2 (32 GB)

OTHERS

Waterproofing	IP56
Power Supply	GP-1871F: 12-24 VDC, 1.0-0.5 A
	NMEA0183: 1 port * Software version 1.1 or later NMEA2000: 1 port
