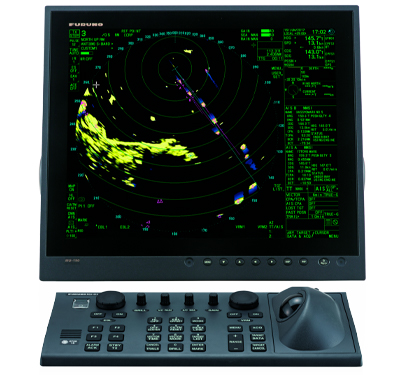

Marine Radar FAR-22x8, FAR 23x8
FEATURES:
-
A complete Solid-state and Magnetron-free X-band / S-band Radar Solution
-
Advanced technologies for safe navigation
-
Automatic Clutter Elimination (ACE) for unprecedented echo clarity
-
Fast Target Tracking™ (TT) function to prevent collision at an early stage
-
InstantAccess bar™ which gives you immediate access to the functions you need
-
Well-designed controllers for stress-free operation
SPECIFICATIONS:
Antenna Radiator
| Type Slotted | Waveguide array |
| Polarization | Horizontal |
| Rotation | 24 rpm or 42 rpm (for high speed craft) *XN24CF not available in 42 rpm |
| Wind Load | 100 kn relative |
| De-icer (option) | On: when temperature goes down to 0°C Off: when temperature goes up to +5°C |
Transceiver/ TX Frequency and modulation
| X-band (Magnetron) | 9410 MHz ±30 MHz, P0N |
| S-band (Magnetron) | 3050 MHz ±30 MHz, P0N |
| X-band (Solid state) | CH1 P0N: 9403.75 MHz/Q0N: 9423.75 ±5MHz or CH2 P0N: 9413.75 MHz/Q0N: 9433.75 ±5MHz |
| S-band (Solid state) | CH1 P0N: 3043.75 MHz/ Q0N: 3063.75 MHz ±5 MHz or CH2 P0N: 3053.75 MHz/ Q0N: 3073.75 MHz ±5 MHz |
Output power
| FAR-2218/2218-BB | 12 kW |
| FAR-2228/2228-BB | 25 kW |
| FAR-2228-NXT/2228-NXT-BB | 600 W |
| FAR-2238S/2238S-BB | 30 kW |
| FAR-2238S-NXT/2238S-NXT-BB | 250 W |
Processor Unit
| Minimum range | 22 m |
| Range Discrimination | 26 m |
| Range accuracy | 1% of the maximum range of the scale in use or 10 m, whichever is the greater |
| Bearing discrimination | 2.1° (XN12CF), 1.5° (XN20CF), 1.2° (XN24CF), 2.0° (SN36CF) |
| Bearing accuracy | ±1° |
AIS
| Display capacity | 350 targets |
| Tracking | 5/10 pts on activated targets |
| Vector time | Off, 30 s, 1-60 min |
| Radar map | 20,000 points |
| Acquisition zone | 2 zones |
| Interswitch Function | Selectable from menu |
Interface
1. Number of port (processor unit)
| Serial | 7 ports (IEC61162-1/2: 2 ports, IEC61162-1: 4 ports, AD- 10: 1 port) |
| Alarm output | 6 ports: contact signal, load current 250 mA (Normal close/ open: 4, System fail: 1, Power fail: 1) |
| DVI output | 2 ports: DVI-D, DVI-I or RGB picture data (VDR) |
| LAN | 2 ports: Ethernet 100Base-TX |
| RS-232C | 1 port: brilliance control |
| Sub display (for ECDIS) | 2 ports: HD, BP, Trigger and Video signal |
2. Data sentences (IEC61162-1/2, IEC61162-450)
| Input | ABK, ACK, ACN, ALR, BWC, BWR, CUR, DBK*1 , DBS*1 , DBT, DDC, DPT, DTM, GGA, GLL, GNS, HBT, HDT*1 , MTW, MWV, OSD, RAQ, RMB, RMC, ROT, RTE, SRP, THS, VBW, VDM, VDO, VDR, VHW, VSD, VTG, VWR*1 , VWT*1 , WPL, ZDA |
| Output | ABM, ACK, AIQ, ALC, ALF, ALR, ARC, BBM, DDC, EVE, HBT, OSD, RSD, SRP, TLB, TLL, TTD, TTM, VSD *1: for retrofit |
3. Ethernet interface for IEC61162-450
| Port (LAN2) | 100Base-TX, IPv4, 8P8C connector |
| IEC61162-450 transmission group | Input MISC, TGTD, SATD, NAVD, TIME, PROP Output Arbitrary (default: TGTD)Multicast address 239.192.0.1 to 239.192.0.20 60001 to 60020 |
Re-transmittable binary image transfer
| Multicast address | 239.192.0.1 to 239.192.0.20 |
| Destination port | 60026 to 60030 |
| Other network function excepted IEC61162-450 | SNMP, HTTP, Syslog, Furuno Management Protocol (FMP) |
4. Output port on antenna unit
| Sub display (for radar) | 1 port: HD, BP, Trigger and Video signal |
Power Supply
1. Processor unit
| FAR-2218 24VDC (21.6-31.2V): 5.4 (9.0)A* | 100-230 VAC: 2.1-1.0 (2.9-1.3)A, 1 phase, 50-60 Hz |
| FAR-2228 24VDC (21.6-31.2V): 8.9 (12.4)A* | 100-230 VAC: 2.3-1.1 (3.2-1.4)A, 1 phase, 50-60 Hz |
| FAR-2228-NXT (-BB) 24VDC (21.6-31.2V): 8.2 (11.1)A * | 100-230 VAC: 2.1-1.0 (2.9-1.3)A, 1 phase, 50-60 Hz |
| FAR-2238S | 100-230 VAC: 3.2-1.5 (5.6-2.5)A, 1 phase, 50-60 Hz |
| FAR-2238S-NXT (-BB) | 100-230 VAC: 2.6-1.2 (5.1-2.2)A, 1 phase, 50-60 Hz |
2. Display Unit
| MU-190 | 100-230 VAC: 0.7-0.4 A, 1 phase, 50-60 Hz |
| 3. HUB (option) | 100-230 VAC: 0.1 A max. 1 phase, 50/60 Hz |
| 4. De-icer (option) | 100-115/220-230 VAC: 2.6/1.3 A, 1 phase, 50-60 Hz |
Environmental Conditions
| Ambient Temperature | Antenna unit: -25°C to +55°C (storage: -25°C +70°C) Indoor units: -15°C to +55°C (storage: -20°C to +70°C) |
| Relative Humidity | 95% or less at +40°C |
| Degree of Protection | Antenna unit: IP56 Processor/ monitor unit: IP22 Control unit: IP20 HUB: IP20 (HUB-100), IP22 (HUB-3000) |
| Vibration | IEC 60945 Ed.4 |
