Marine Radar FAR-1518

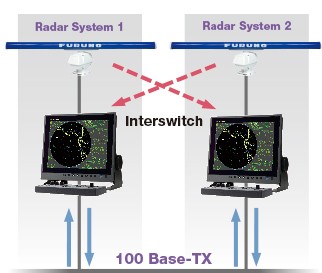

FAR-15x8 series utilizes a 100 Base-TX Ethernet connection to network up to two radar systems together.
This Ethernet data link gives high-speed and stable navigational data sharing for interswitching as well as sharing data between ECDIS and GPS plotters.
FEATURES:
-
High performance Radar with Cat.2 (500-10,000GT) and Cat.3 (<500GT) support
-
Automatic Clutter Elimination (ACE) for unprecedented echo clarity

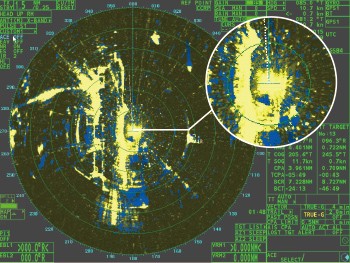

Automatic Clutter Elimination (ACE) OFF

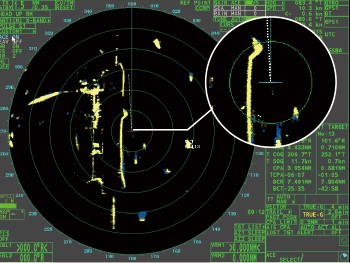

Automatic Clutter Elimination (ACE) ON
Quickly adjust the radar image with the push of a single button press. When the ACE function is activated, the system automatically adjusts clutter reduction filters and gain control according to the sea and weather conditions selected by the user (calm/rough sea/hard rain).
-

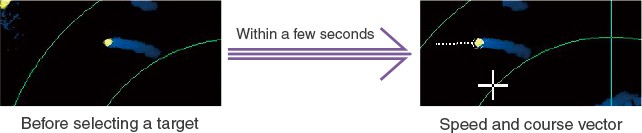

Fast Target Tracking™ (TT)
It only takes a few seconds after a target has been selected, that a speed and course vector is displayed.
With accurate tracking information, estimation of other vessel's course and speed is made easier.
-

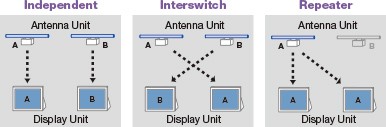

Scalable Ethernet Network System
FAR-15x8 series utilizes a 100 Base-TX Ethernet connection to network up to two radar systems together.
This Ethernet data link gives high-speed and stable navigational data sharing for interswitching as well as sharing data between ECDIS and GPS plotters.
-
High visibility monitor MU-190 and MU-150HD
19" LCD MU-190 (Cat.2) and 15" LCD MU-150HD (Cat.3) are offered to fit the needs of your vessel.
High brightness ensures great visibility in all environments.
-
AIS connectivity built-in, accurately track targets for increased safety
-
Customizable warning function for CPA/TCPA, Guardzone and more
SPECIFICATIONS:
ANTENNA UNIT |
|
| Antenna type |
Slotted waveguide array |
| Radiator length |
4 ft (XN12AF), 6.5 ft (XN20AF) |
| Horizontal beamwidth |
1.9° (XN12AF), 1.23° (XN20AF) |
| Vertical beamwidth |
20° |
| Sidelobe attenuation |
XN12AF XN20AF |
| Polarization |
Horizontal |
| Rotation |
26 rpm (RSB-120), 48 rpm (RSB-121) |
|
RF TRANSCEIVER |
|
| Frequency |
9410 MHz ±30 MHz, P0N |
| Output power |
12 kW |
| Minimum range |
25 m |
| Range discrimination |
25 m |
| Range accuracy |
1 % of range in use or 10 m whichever is the greater |
| Bearing accuracy |
±1° |
| IF frequency |
60 MHz |
|
PROCESSOR UNIT |
|
| Echo tones |
32 levels |
| Warm-up time |
90 s approx. |
| Presentation mode | Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up |
| Marks |
Cursor, Radar ring, Heading mark, North mark, Bearing line, |
| Target tracking (TT) |
Auto or manual acquisition: 50 targets in 0.2-32 NM |
| AIS |
Display capacity: 300 targets, Tracking: 5/10 pts on all target |
| Echo trail |
True/Relative, Trail length: 0 to 30 minutes (30 s steps) or continue |
| Radar map |
5,000 pts |
| Interswitch function |
Selected from menu |
|
MARINE DISPLAY/ MONITOR UNIT |
|
| Screen type |
15-inch color LCD, 304 x 228 mm, 1024 x 768 (XGA) |
| Brightness |
MU-150HD 1,000 cd/m2 typical |
| Contrast |
MU-150HD 600:1 |
| View angle |
160° typical |
| Radar effective diameter |
205 mm |
|
INTERFACE |
|
| Number of ports on processor unit | Heading Serial Contact closure Remote display LAN DVI RGB |
Data sentences |
|
| Input |
ABK, ACK, ACN, ALR, BWC, BWR, CUR, DBK, DBS, DBT, DPT, DTM, GBS, GGA, GLL, GNS, HBT, HDG, HDM, HDT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VDM, VDO, VDR, VHW, VSD, VTG, VWR, VWT, WPL, ZDA |
| Output |
ABM, ACK, ALC, ALF, ALR, ARC, BBM, EVE, HBT, OSD, RSD, TLB, TLL, TTD, TTM, VSD |
| POWER SUPPLY | |
| Processor unit |
AC type DC type |
| Marine display/ Monitor unit |
MU-150HD 12-24 VDC: 4.5-2.2 A |
| Rectifier (RU-1746B-2/RU-3424, option) |
100-115/220-230 VAC, 1 phase, 50/60Hz |
| Transformer (RU-1803, option) |
440 VAC, 1 phase, 50/60Hz |
|
ENVIRONMENTAL CONDITIONS |
|
| Ambient temperature | Antenna unit Processor unit Marine display (Monitor) |
| Relative humidity |
93% or less at +40°C |
| Degree of protection |
Antenna unit Processor unit Control unit Marine display (Monitor) |
| Vibration |
IEC 60945 Ed.4 |
|
UNIT COLOR |
|
| Antenna unit |
N9.5 (fixed) |
| Processor/control unit |
N2.5 (fixed) |
| Marine display (Monitor) |
N2.5 (fixed) |
|
PERFORMANCE MONITOR (PM-32A) |
|
| Frequency range |
9380 to 9440 MHz |
| Input power |
+18dBm to +30dBm |
| Output power |
-21 dBm (1st pulse max. output), -41 dBm (1st pulse min. output) |
| Step level |
8 to 12 dBm (1st pulse to last pulse) |
