LCD RIVER RADAR 10.4" MODEL 1937
The MODEL1937 Radar is a high contrast 10.4" color LCD radar suited for vessels sailing in narrow areas such as rivers and canals. The radar antenna features a high rotation speed (48rpm). This provides the operator with a faster update rate of the radar image which in turn can be used to avoid possible collisions.
FEATURES:
-
Superb detection in Close-Range
-
High speed antenna rotation (48 rpm) for faster update of radar image
-
Easy-to-install 10.4" portrait color LCD (350 cd) display
-
Bonded LCD provides clear view in all weather conditions
-
Stable AIS/ARPA target-tracking with zoom display function
-
Full Screen Mode lets operators observe a wider range around the vessel
-
Enhanced auto tuning/gain/anti-clutter controls
SPECIFICATIONS:
|
ANTENNA RADIATOR |
|
| Type |
Slotted waveguide array |
| Antenna Length and Rotation Speed |
Open 120 cm (XN12A) 48 RPM |
| Wind Load |
70 kn relative wind |
| Beamwidth |
Hor. 1.9°, Vert. 22° |
|
RF TRANSCEIVER |
|
| Frequency |
9410 ± 30 MHz (X-band) |
| Output Power |
4 kW |
|
DISPLAY |
|
| Screen Size |
10.4" color LCD |
| Pixel Number and Screen Resolution |
640 (V) x 480 (H), VGA |
| Effective Diameter |
158 mm |
| Echo Colors |
32 levels |
| Display Modes |
Head-up, Course-up*, North-up*, Trueview*, True motion** |
| Range Units |
nm, sm, km |
| Range Scales and Range Ring Intervals (nm) Range | 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 1.6, 2, 3, Rings: 1/32, 1/16, 1/8, 1/4, 1/2, 0.8, 1, 2, 3, 4, 6, 8, 12 |
| Minimum Range |
16 m |
| Range Discrimination |
15 m |
| Echo Trails |
Type : Trail Length: Trail Width: |
Plotting Facilities (Required optional board ARP-11) |
|
| Acquisition |
Auto, Manual |
| Number of Targets | 10 targets max |
| AIS Functions (Data input from AIS is required) Symbols |
Sleeping, Activated, Dangerous, Selected, Lost targets Number of Targets: |
|
INTERFACE |
|
| Input |
AD-10 or IEC 61162 NMEA0183 |
| Output | IEC 61162 NMEA0183 Ver. 1.5/2.0/3.0 |
| ENVIRONMENT | |
| Temperature |
Antenna Unit: Display Unit: |
| Waterproofing |
Antenna Unit: Display Unit: |
| POWER SUPPLY |
12-24 VDC: 8.1-3.8 A |

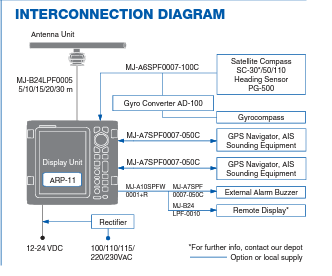

Interconnection Diagram
