LCD RADAR 10.4" MODEL 1835

---

The MODEL1835 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters.

FEATURES:

• Easy-to-install 10.4" portrait color LCD (350 cd) display

• Bonded LCD provides clear view in all weather conditions

• Stable AIS/TT target-tracking with zoom display function

• Full Screen Mode lets operators observe a wider range around the vessel

• Enhanced auto tuning/gain/anti-clutter controls

• Echoes in yellow, green, orange or multiple colors

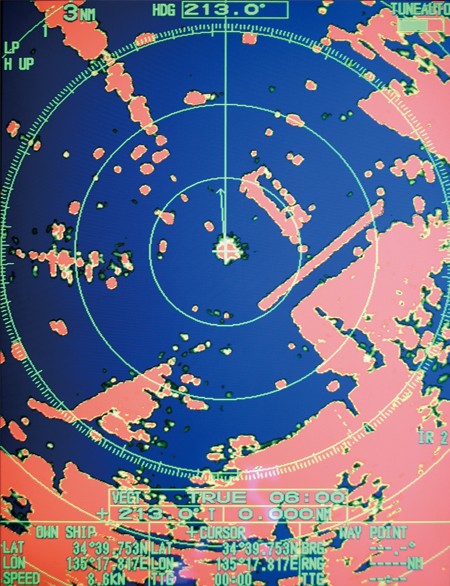

           FULL SCREEN

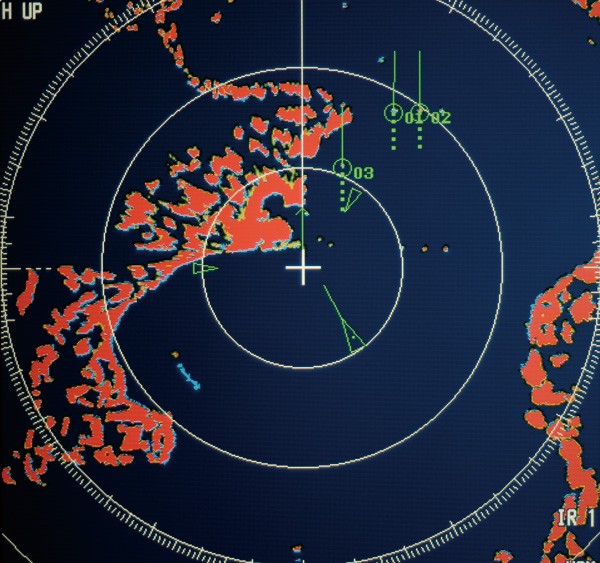

               AIS ARPA

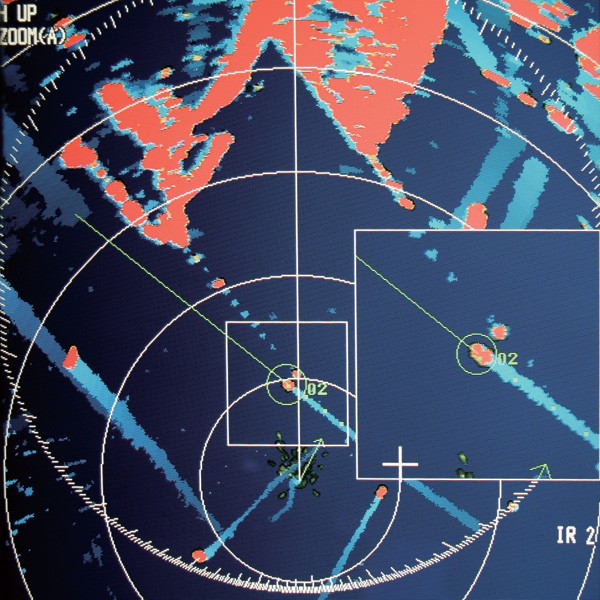

        AIS ARPA ZOOM



Click for Brochure

SPECIFICATIONS:

Peak Output Power	4 kW
Type	ø602 mm Radome (24'')
Frequency	9410±30 MHz (X-band)
Beam Width (Horizontal)	4.0°
Beam Width (Vertical)	20°
Range Scales	0.0625-36nm
Weight	8 kg
DISPLAY
Display Unit	10.4'' color LCD (640 x 480, VGA)
Display Mode	Head-up, Course-up*, North-up*, True view*, True  motion** * Heading data required ** Heading and position data required
Other Mode / Functions	ARP/AIS display*1, Target tracking*2, User  programmable keys, Echo trails *1 Requires AIS transponder/receiver installed *2 Requires heading and speed data
Weight	5.4 kg
ENVIRONMENT
Temperature	Display unit : -15°C to +55°C Antenna unit : -25°C to +55°C
Waterproofing	Display unit : IP55 Antenna unit : IP26
POWER SUPPLY
Power Supply / Consumption Current	12-24 VDC: 4.1-2.0 A

Equipment List

• DISPLAY UNIT, RDP-152-E
• RADOME ANTENNA UNIT, RSB-0071-057
• INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS

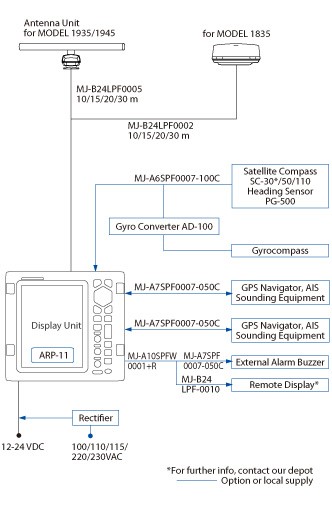

Interconnection Diagram
