High Power X-band Fishing Radar (50kW) FAR-2258
FEATURES:
-
Powerful Radar delivering stronger and farther detection with very high resolution
-
Improved detection performance compared to previous models
-
Function keys support up to 32 customizable features & settings
-
A total of 40 origin marks can be entered
-
Easily identify fishing grounds with colored track lines
-
Intuitive off-center function with trackball
-
Fishing gear echoes easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range
-
TT target acquisition up to a distance of 48 NM
-
AIS customization helps you keep an eye on other vessels
-
TT custom settings make it easier to distinguish other ships!
SPECIFICATIONS:

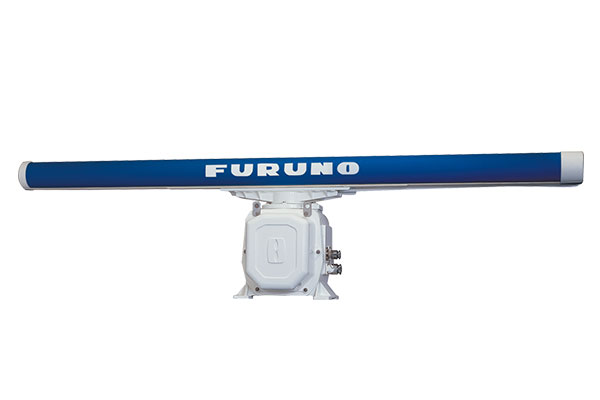

ANTENNA
| Peak Output Power | 50 kW |
| Type | 240 / 300 cm Slotted Array |
| Frequency | 9410 MHz ±30 MHz, P0N |
| Beam Width (Horizontal) | 0.95° (240 cm), 0.75° (300 cm) |
| Beam Width (Vertical) | 20° |
| Range Scales | 0.125 ? 96 NM |
| Antenna Rotation Speed | 24 rpm |
DISPLAY
| Display Unit | 19-inch Color LCD, 1280×1024 (SXGA) 23.1-inch Color LCD, 1600×1200 (UXGA) 27-inch Color LCD, 1920×1200 (WUXGA) |
| Display Mode | Head-up, STAB head-up, Course-up, North-up, (RM/TM), Stern-up |
| Other Mode / Functions | Target Tracking (TT), Plotter function, AIS |
ENVIRONMENT
| Temperature | Antenna Unit: -25? to + 55? (Storage: -25? to + 70?? Other: -15? to + 55? (Storage: -20? to + 70?) |
| Waterproofing | Antenna Unit: IP56 Processor Unit/Display Unit: IP22 Control Unit: IP20 (RCU-014/015/016), IP22 (RCU-031) Hub: IP20 (HUB-100), IP22(HUB-3000) |
POWER SUPPLY
| Power Supply / Consumption Current | Antenna Unit 100-115/220-230 VAC: 3.1/1.5 A, Phase, 50-60 Hz |
| Processor Unit 100-230 VAC: 2.2-1.1 A, Phase, 50-60 Hz |
|
| Display Unit [MU-190] VAC100-230: 0.5-0.4 A, 1 phase, 50-60 Hz [MU-192HD] VDC12-24 / 4.9-2.3 A [MU-270W] VAC100-230: 0.7-0.4 A, 1 phase, 50-60 Hz |
|
| Hub (Option) 100-230 VAC: 0.1 A, 1 Phase, 50-60 Hz |
