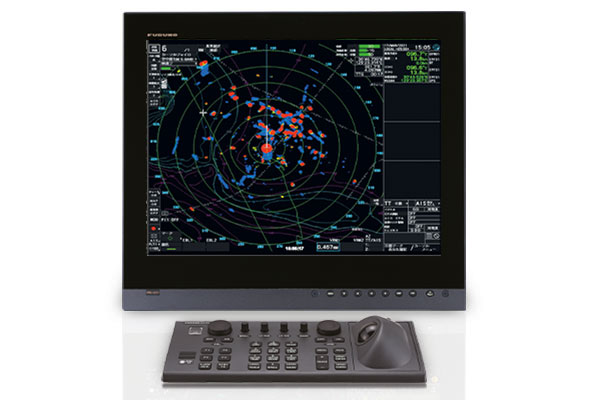

High Power S-band Fishing Radar (60kW) FAR-2268DS
FEATURES:
-
Gain in Searching POWER with S-band antennas
-
Improved detection performance and accuracy at long range compared to previous models
-
Function keys support up to 32 customizable features & settings
-
Easily identify fishing grounds with colored track lines
-
A total of 40 origin marks can be entered
-
Intuitive off-center function with trackball
-
Fishing gear echoes are easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range
-
TT target acquisition up to a distance of 48 NM
-
AIS customization helps you keep an eye on other vessels
-
TT custom settings make it easier to distinguish other ships!
SPECIFICATIONS:
ANTENNA
| Peak Output Power | 60 kW |
| Type | 320/380 cm Slotted Array |
| Frequency | 3050 MHz ±30 MHz, P0N |
| Beam Width (Horizontal) | 2.3° (320 cm), 1.8° (380 cm) |
| Beam Width (Vertical) | 25° (SN30AF/SN36AF) 22° (SN30DF) |
| Range Scales | 0.125 ? 96 NM |
| Antenna Rotation Speed | 24 rpm |
DISPLAY
| Display Unit | 19" Color LCD, 1280 × 1024 (SXGA) 23.1" Color LCD, 1600 × 1200 (UXGA) 27" Color LCD, 1920 × 1200 (WUXGA) |
| Display Mode | Head-up, STAB head-up, Course-up, North-up, (RM/TM), Stern-up |
| Other Mode / Functions | Target Tracking (TT), Plotter function, AIS |
ENVIRONMENT
| Temperature | Antenna Unit: -25? to + 55? (Storage: -25? to + 70?) Other: -15? to + 55? (Storage: -20? to + 70?) |
| Waterproofing | Antenna Unit: IP46 Processor Unit/Display Unit: IP22 Control Unit: IP20 (RCU-014/015/016), IP22 (RCU-031) Hub: IP20 (HUB-100), IP22 (HUB-3000) |
POWER SUPPLY
| Power Supply / Consumption Current | Antenna Unit 100-115/220-230 VAC: 3.1/1.5 A, Phase, 50-60 Hz |
| Processor Unit 100-230 VAC: 2.2-1.1 A, Phase, 50-60 Hz |
|
| Display Unit [MU-190] VAC100-230: 0.5-0.4 A, 1 phase, 50-60 Hz [MU-192HD] VDC12-24 / 4.9-2.3 A [MU-270W] VAC100-230: 0.7-0.4 A, 1 phase, 50-60 Hz |
|
| Hub (Option) 100-230 VAC: 0.1 A, 1 Phase, 50-60 Hz |
