GPS-WAAS CHART PLOTTER With Built-In CHIRP FISH FINDER GP- 1981F

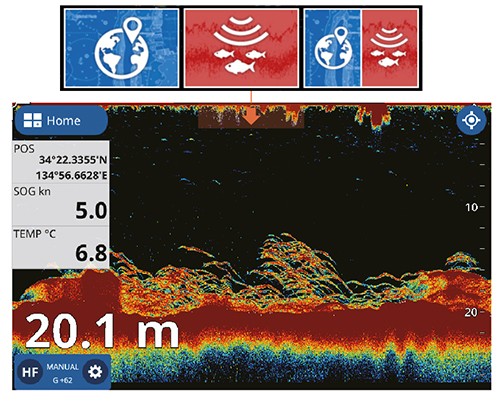

The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,
features slide-out menus containing all the tools and data you need to be in total control.
FEATURES:
-
The Ultimate Combo Units
-
Wireless Connection to Smartphone and tablet
-
Multi-Touch Interface
The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,features slide-out menus containing all the tools and data you need to be in total control.
-

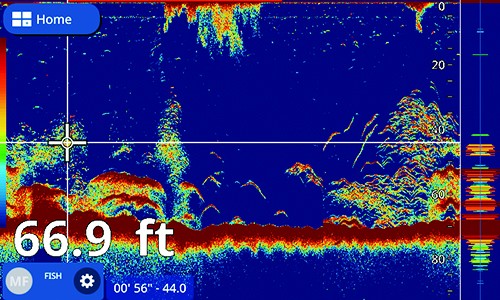

Built-in CHIRP FISH FINDER
The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.
Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.
-
Detailed Charts, Navionics and C-MAP 4D compatibility
By using the incredibly rich C-MAP 4D and Navionics charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.
-

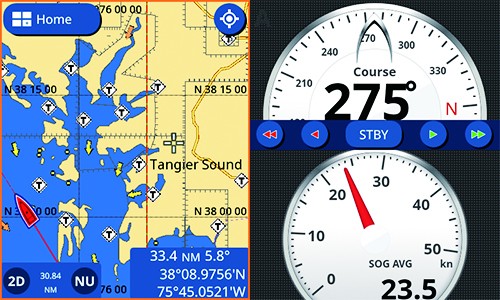

Autopilot controls
Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter
-
Plotter with AIS symbols
When connected to an AIS receiver, the GP-1871F/1971F will display the latest AIS data and provide vessel information.
-
Internal GPS antenna for simple and easy installation
-
AR (Anti-Reflective) glass coating and strengthened glass filter
-

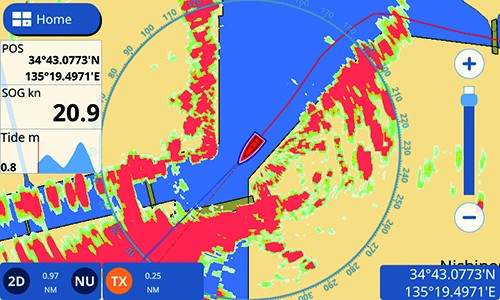

DRS4W 1st Watch Wireless Radar
The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar
(Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety
SPECIFICATIONS:
Display Unit |
|
| Screen Type | GP-1871F: 7" Wide Color TFT LCD |
| Screen Resolution | WVGA 800 x 480 pixels |
| GPS Antenna | Internal Antenna |
| Display Modes | -Chart Plotter |
| Language | English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese. |
GPS / SBAS (WAAS/EGNOS/MSAS) |
|
| Receiving Type | GPS 72 channels |
| Receiving Frequency | L1 (1575.42 MHz) |
| Accuracy | GPS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m MAX |
PLOTTER |
|
| Chart | C-MAP 4D and Navionics Charts |
| Memory Capacity | 30,000 points for ship's track and waypoints 1,000 planned routes (Max. 250 points per route) 5,000 quickpoints |
FISH FINDER |
|
| Frequency | CHIRP: 40 to 225 kHz |
| Transducer | 300 W or 600 W or 1kW (Transducer dependent) |
| Range | 5-1, 200m, shift :0-500m |
| Modes | TruEcho CHIRP™*, RezBoost™**, ACCU-FISH™**, Bottom Discrimination**, Dual Frequency**, Dual Range** Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock |
Interface |
|
| NMEA2000 | 1 port (Interface CAN bus) |
| NMEA0183 | 1 port |
| Other | Micro SD Card Slot x2 (32 GB) |
OTHERS |
|
| Waterproofing | IP56 |
| Power Supply | GP-1871F: 12-24 VDC, 1.0-0.5 A NMEA0183: 1 port * Software version 1.1 or later |

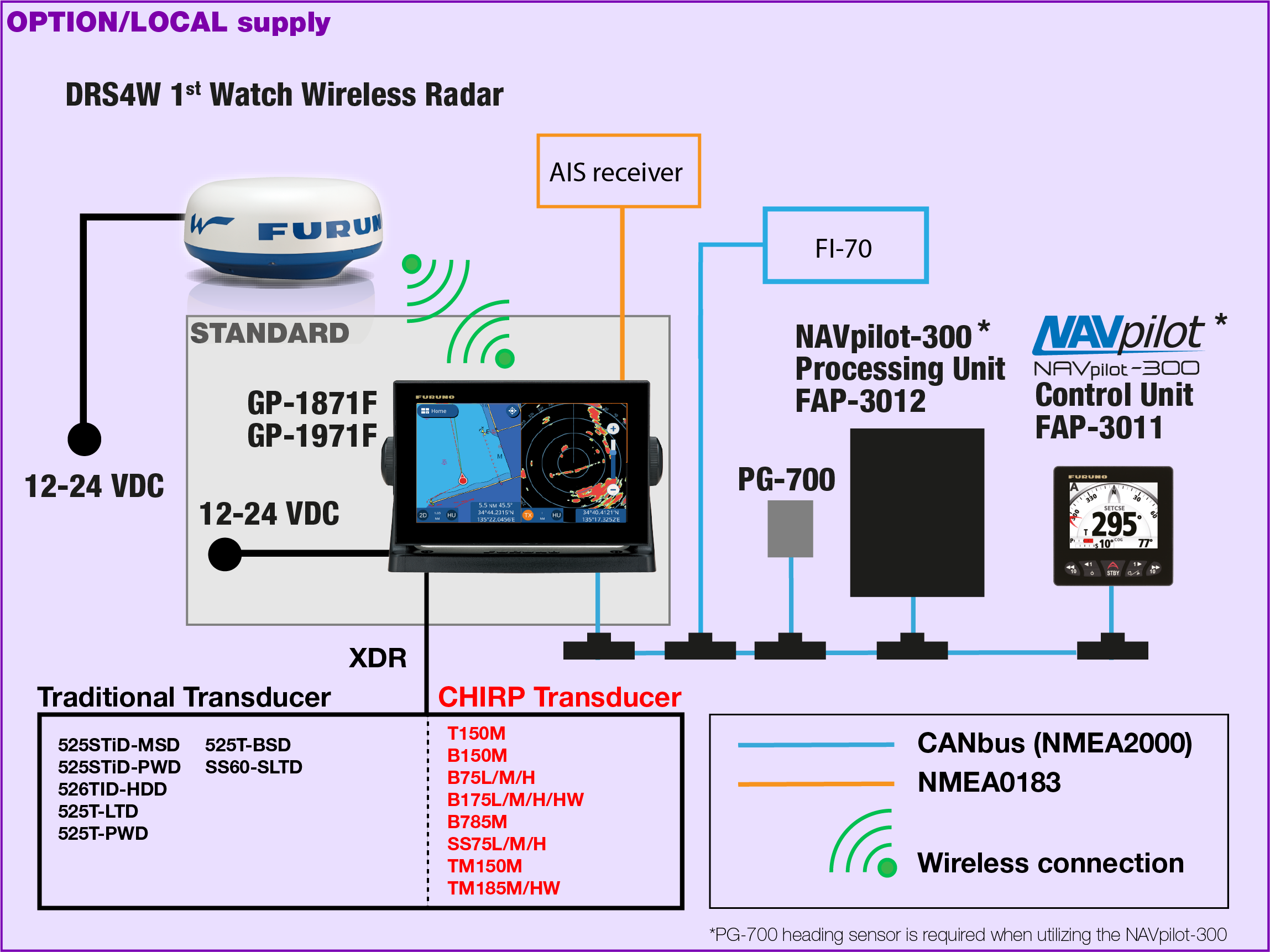

Interconnection Diagram
