GPS NAVIGATOR 4.3" GP-33

---

Compact in size, yet big on features and performance, the FURUNO GP-33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides accurate and reliable position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology.

FEATURES:

• 4.3" "Sunlight Viewable" color LCD (Brightness: 700 cd)

• Enhanced data legibility thanks to large characters and high resolution visual aid

• Stores up to 10,000 marks/waypoints, 100 routes and 3,000 track points

• 7 display modes available, including 2 user-customized modes

• Supports both NMEA0183 and CAN bus interface

• Contact closure capability available on the 10P connector

• SBAS capable for better measurement

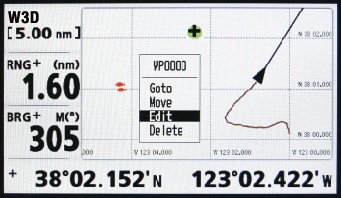

• Easy Operation

Innovative digital graphic displays and intuitive on-screen menu structure provide simple operation and easy access to the features you use most frequently.



Click for Brochure

SPECIFICATIONS:

Display Unit

Screen Type	4.3" Color LCD
Screen Resolution	WQVGA 480 x 272
GPS Antenna	External
Display Modes	Plotter, Steering, Highway, NAV data,User display1, User display2, Satellite Monitor Display
Language	English, French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish
GPS / SBAS (WAAS/EGNOS/MSAS)
Receiving Type	Twelve discrete channels, C/A code, all-in-view
Receiving Frequency	1575.42MHz
Accuracy	GPS: 10 m, MSAS: 7 m, WAAS: 3 m
PLOTTER
Memory Capacity	3,000 ship's track points 10,000 waypoints with comments 100 routes, 30 waypoints/route
OTHERS
Waterproofing	Display unit: IP56, Antenna unit: IPX6
Power Supply	Non CANbus: 12-24 VDC, 0.24-0.12 A CANbus: 15 VDC, LEN7
Size	146 (H) x 172 (W) x 88 (D)
Weight	0.7 kg (Bracket mount)



Equipment List

• DISPLAY UNIT GP-33-E
• ANTENNA UNIT GPA-017 WITH 10M CABLE
• CABLE M12-05BM+05BF-060 (6 M)
• HARD COVER
• INSTALLATION MATERIALS AND SPARE PARTS

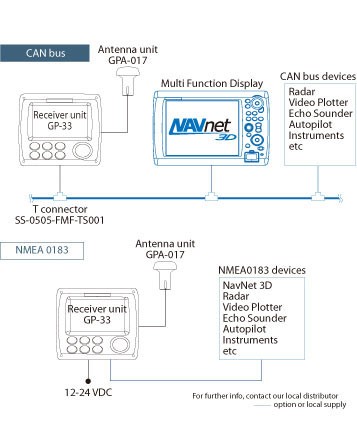

Interconnection Diagram
