DOPPLER SPEED LOG DS-80

---

High accuracy by utilizing the Doppler principle, paired beam eliminating effect of pitching, and velocity correction for change of water temperature

FEATURES:

• Speed and distance run indicated on a large illuminated LCD display

• Compact display unit and transducer

• High accuracy by utilizing the Doppler principle, paired beam eliminating effect of pitching, and velocity correction for change of water temperature

• Easy speed correction at mile post run

• Speed output to ARPA, radar, ECDIS, AIS,VDR,GMDSS equipment etc.

• Complies with IMO standards MSC. 96(72),A.824(19),A.694(17), IEC 61023 and other related standards

• Fully meets SOLAS carriage requirement for ships over 300GT

• Fits the hull either directly or with a gate valve

Click for Brochure



SPECIFICATIONS:

Measuring System	Paired-beam Doppler log, 1 MHz
Display unit	4.5" (95 x 60 mm) Monochrome LCD 120 x 64 pixels
Character size	15 or 21 mm high selectable
Speed Range	Forward: 0 - 40 kn, 0.1 kn steps Astern: 0 - 10 kn, 0.1 kn steps
Distance Run	0-999,999.99 NM, resettable to any value.
Accuracy	peed through-the-water (STW): 1%, display resolution 0.1 kn Distance run: 1%, in steps of 0.1 NM
Water Depth	Deeper than 3m
Correction	Sound velocity: Automatic correction for change of water temperature Mile post run: ±10% on menu
Test	-10 and 40 kn
Power Supply	115/230 VAC
Interface	IEC 61162-1
Output	VBW, VLW
ENVIRONMENT (IEC 60945 test method)
Temperature	-15ºC to +55ºC (Display unit)
Waterproofing	Display unit; IPX5 CFR-46 (USCG)

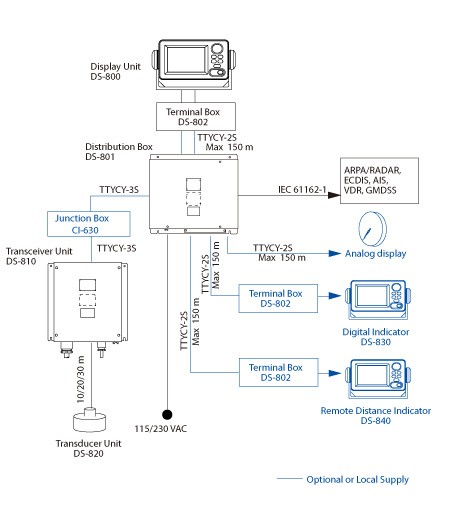

Interconnection Diagram
