Class A AIS Transponder FA-170

---

Displays information about the AIS-equipped ships, as well as, coastal stations and Aids to Navigations within VHF coverage.

FEATURES:

• Class A AIS transponder

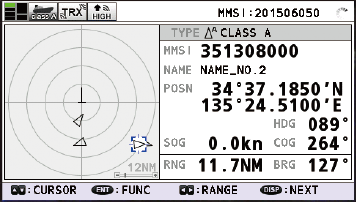

• Plotter display

Displays symbols for AIS-equipped ships, base stations, AIS-SARTs, and so on.
When you select a certain target, the information about the ship (MMSI (or name, when available), heading, SOG, COG, etc.) is displayed.

•  Outputs AIS data to ECDIS, radar and other navigational equipment for collision avoidance support

•  LAN interface available for efficient network integration into a bridge system

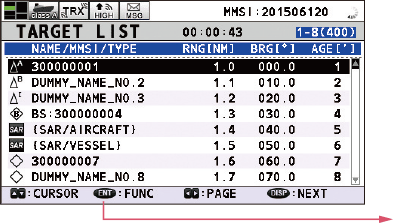

• Target list

The FA-170 can store up to 2048 AIS targets and AIS-SARTs.

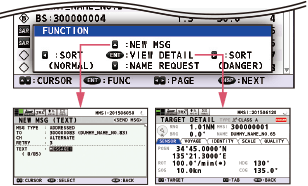

When you select one target from the list and press [ENT] key, the pop-up window is generated.

The FA-170 displays the detailed information on the selected target. Also, you can create an AIS message or send a name request to the target ship.

•  BAM (Bridge Alert Management) ready

Meets the specific requirements for alerts and interconnection with Bridge Alert Management as specified in IMO MSC.302 (87).

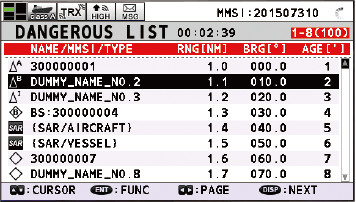

• Dangerous target list

The dangerous target list displays the name and particulars of targets classified as dangerous targets.

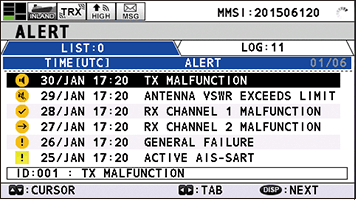

• Alert list

Displays all (current and past) alerts

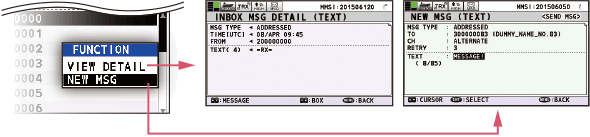

• Short safety-related messages

Short safety-related messages can be exchanged with a specified MMSI or all AIS-equipped ships via VHF channels.
The FA-170 can store up to 20 transmitted, as well as up to 20 received messages.

 When you select one message and press [ENT] key, the pop-up window is generated where the message contents can be viewed and reply messages can be created for transmission.



Click for Brochure

SPECIFICATIONS:

GENERAL

Reporting Capacity	2250 Reports per minute on 1 Channel 4500 Reports per minute on 2 Channels
Standards	IMO MSC.74(69) ANNEX 3, IMO MSC.302(87), IMO A.694(17), IMO MSC.191(79), ITU-R M.1371-5, DSC ITU-R M.825-3, IEC61993-2 Ed. 2, IEC60945 Ed. 4 CORRIGENDUM 1, IEC 62288 Ed. 2, IEC 61162-1 Ed. 4, IEC 61162-2 Ed. 1, IEC61162-450 Ed. 1



TRANSPONDER UNIT

TX/RX frequency	156.025 to 162.025 MHz
Bandwidth	25 kHz
Output power	1 W or 12.5 W selectable
DSC receiver	156.525 MHz, CH70 fixed



INTERFACE

COM port	6 ports input/output, IEC61162-1 Ed. 4 / IEC61162-2 Ed. 1
SENSOR port	3 ports input only, IEC61162-1 Ed. 4
LAN	1 port, IEC61162-450 Ed. 1, 100 Base-TX, Auto MDI/MDIX
Alarm output	1 port, Relay contact (select from Normally closed (default) or Normally open), Alarm ACK



GPS RECEIVER

Receiving channels	12 channels parallel, 12 satellites tracking
RX frequency	1575.42 MHz
RX code	C/A code
Position accuracy	GPS: less than 13 m (2 drms, HDOP<4) DGPS: less than 5 m (2 drms, HDOP<4)



MONITOR UNIT

Screen size	4.3-inch color LCD, 480 x 272 dots (WQVGA)
Viewing area	95.04 (W) x 53.856 (H) mm
Brightness adjustment	18 steps



POWER SUPPLY

Transponder unit	12-24 VDC 6-3 A
Monitor unit	12 VDC 0.3 A max. (supplied by Transponder unit)
AC/DC Power Supply Unit PR-241 (option)	100/110/200/220 VAC, 1ø, 50/60 Hz

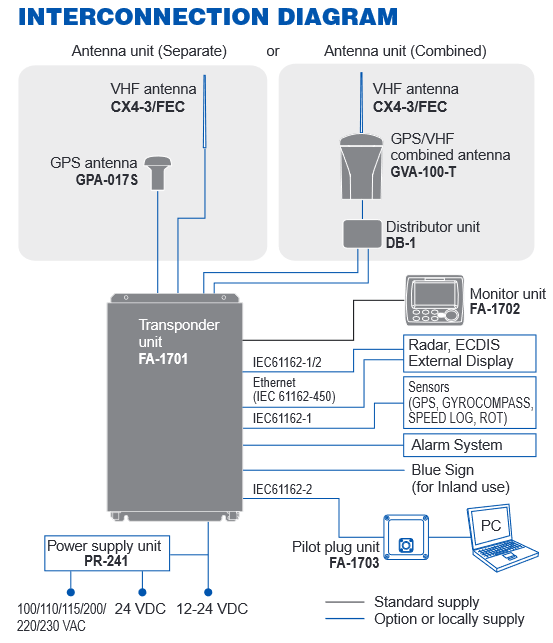

Interconnection Diagram
