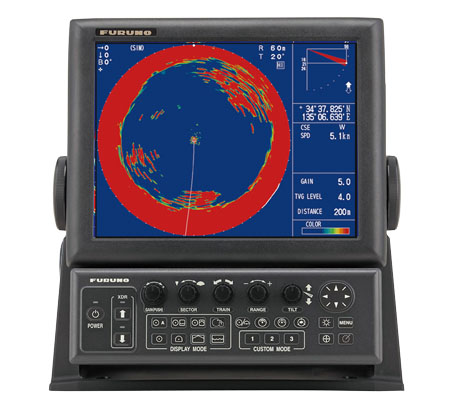

Search Light 12.1" SONAR CH-500

---

FEATURES:

• Faster motor delivering quicker training speeds

• Built-in motion sensors provide a stabilized target presentation in rough sea conditions

• 6 step angles for speed adjustement according to the user's needs

• Reverberation reduction function

• Full-circle A-Scope mode and audible target detection

• Higher resolution due to advanced signal processing

SPECIFICATIONS:

General

Frequency	60/88/150/180/240 kHz (Selectable)
Basic Range	10m ~ 2400m, 15 steps

Display Unit

Display unit	12.1" Color LCD Display
Pixel number	XGA (1024 x 768)
Colors	Echo color: 32, 16 or 8 colors (Selectable) Back-ground: 3 colors selected (Selectable)
Display mode	Normal screen: Horizontal, Horizontal (zoom), Vertical, Full-circle A-Scope, Echo Sounder Split screen: Half-Horizontal + Vertical, Horizontal + vertical, Horizontal + Full-circle A-scope, Horizontal + A-Scope, Horizontal + History, Echo Sounder + A-Scope

Transceiver Unit

Output Power	0.8 kW to 1.5 kW (depending on frequency)
TVG	Level: 100 dB max, Distance: 1000 m max
Audio Output	2 W (8 ohms) Frequency 0.9 to 1.2 kHz(external speaker required)

Interface

Ports

Video signal output : 1 port, HDMI, XGA NMEA0183 : 2 ports, V1.5/2.0/3.0/4.0/4.1, 4800/9600/19200/38400 bps NMEA2000 : 1 port External KP : 1 port. I/O
