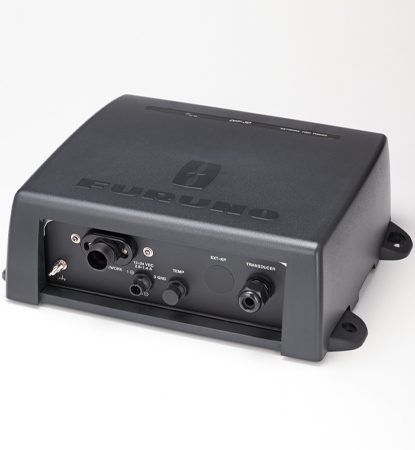

Network Multi Beam SONAR DFF-3D

---

FEATURES:

• Sidebar detection range is up to 200 m (over 650 feet)* in a 120-degree swath port and starboard direction.

• Deep water, main beam penetration directly under the boat is approx. 300 m (over 980 feet)*.

• The compact transducer allows easy installation.

• The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions.

• Depending on the situation and preference, a combination of screen modes can be displayed.

• Cross Section

• 3D Sounder History

• Triple/Single Beam Sounder

• Side Scan

SPECIFICATIONS:

General

TX Frequency	165 kHz
Output Power	800 W
Minimum Range	3 m
Basic Range	5-1200 m
Detection Range	200 m* (Side Beam Best Performance) 300 m* (Main Beam Directly Under Boat) *Depending on bottom, water and installation.
Beam Angle for Triple Beam Sounder	20°-50° from right under
Display Mode	Triple/Single Beam Sounder, Side Scan, Cross Section, 3D Sounder History

Interface

LAN	1 port, Ethernet 10/100Base-TX
External KP	1 port (optional external KP kit required)
