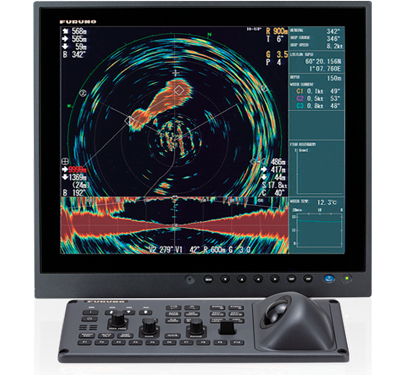

FULL-CIRCLE COLOR SCANNING SONAR FSV-35

---

FEATURES:

• Sphere transducer provides 90 degrees vertical detection

• Menu-driven operation

• Vivid 32-color echo strength dependent display for improved recognition of bottom, fish school concentration, distribution and volume

• Dual Display mode

• Schools of fish can be searched from horizontal (range direction), vertical (depth direction) with vertical features

• Pitching and rolling compensation for stable picture always

• User programs for one-touch setup of equipment

• Function keys for direct access to desired menu item

• Fish histogram shows signal strength distribution of echo within estimate mark

• Fish estimate feature to compare the volume of two schools of fish

















SPECIFICATIONS:

General

Basic Range

60-5000 m

Power Supply

Processor Unit	12-24 VDC: 8.7 – 4.4 A (I/F unit included) Interface unit: 48 VDC: 2.7 A or less (from Processor unit)
Transceiver Unit	100/110/115/220/230 VAC: 15 A, 1 phase, 50-60Hz
Hull Unit	220 VAC: 12 A, 3 phase, 50-60Hz
