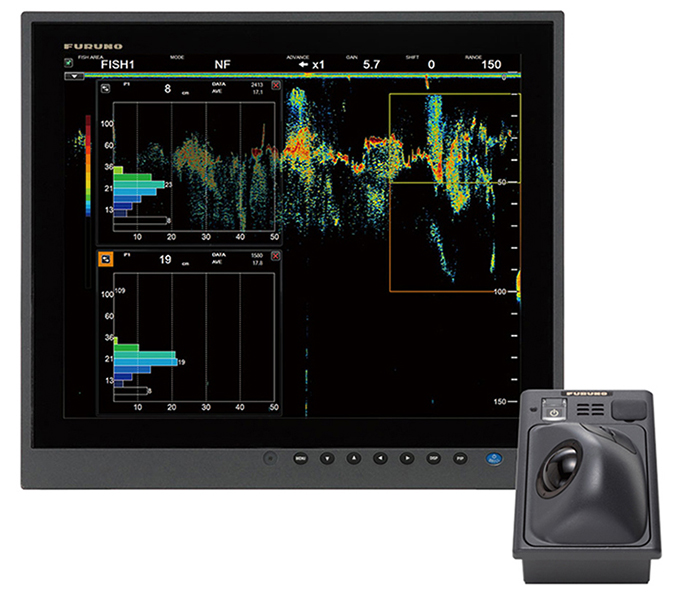

FISH SIZE INDICATOR FCV-2100

---

FEATURES:

• Display remarkably accurate fish size measurements in easy-to-understand graph form

• Simultaneously displays fish size measurements in three locations

• Simple operation with trackball and InstantAccess bar™

• Still images and echo data can be recorded and played back

• Checking past images with the convenient scroll-back mode

• Makes your fishing operation more efficient

• Can be connected to an external fish finder (DFF3/DFF1-UHD network fish finder*)

SPECIFICATIONS:

Fish Finder

Frequency	100 kHz nominal
Transducer	1 kW, FM transmission
Range Scale	10 to 800 m
Pulselength & PRR	800 pulse/min or less
Display Mode	Single mode, Zoom, External sounder display, Bottom-lock expansion, Bottom zoom, Marker zoom, Discrimination zoom, Fish size graph
Range Shift	800 m max.

Others

Power Supply	Transceiver unit: 24 VDC, 1.6 A Processor unit: 24 VDC, 2.5 A
Size	Processor unit: 209 (H) x 423 (W) x 350 (D) Transceiver unit: 364 (H) x 390 (W) x 75 (D) Transducer: 135 (H) x 160 (W)
Weight	Processor unit: 8 kg Transceiver unit: 5.5 kg Transducer: 7 kg
