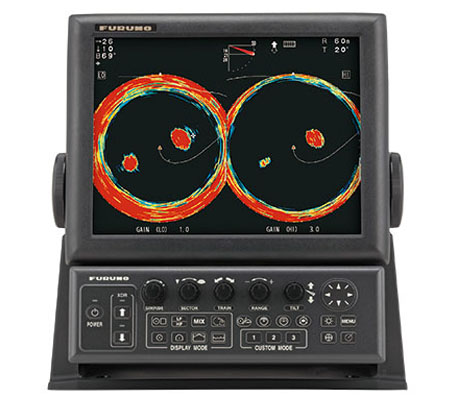

DUAL-FREQUENCY SEARCHLIGHT 12.1" SONAR CH-600

---

FEATURES:

• Two frequencies combined to increase your chances of finding fish

• The dual-frequency can reveal the presence of sardines and whitebait

• Reverberation reduction function

• Faster motor delivering quicker training speeds

• 6 step angles for speed adjustement according to the user's needs

• Full-circle A-Scope mode and audible target detection

• Advanced signal processing offering high resolution

SPECIFICATIONS:

Transceiver Unit Unit

Frequency	60/153 kHz or 85/215 kHz (Selectable)
Output Power	1 kW
Pulse Length	0.2~20.0 ms, according to range
TVG	Level: 100 dB max, Distance: 1000 m max.
Range	Horizontal: 10 to 2400 m, 15 steps (user selectable) Vertical: 10 to 600 m, 15 steps (user selectable)
Audio Output	2 W (8 ohms) Frequency 0.9 to 1.2 kHz(external speaker required)

Display Unit

Screen type	12.1" Color LCD Display?XGA (1024 x 768)
Echo color	Echo color: 32, 16 or 8 colors (Selectable) Back-ground: 3 colors selected (Selectable)
Display modes	Normal screen: Horizontal, Horizontal (zoom), Vertical, Full-circle A-Scope, Echo Sounder Split screen: Half-Horizontal + Vertical, Horizontal + vertical, Horizontal + Full-circle A-scope, Horizontal + A-Scope, Horizontal + History, Echo Sounder + A-Scope Dual Frequency: Dual Horizontal + Dual Vertical + Dual Horizontal/Vertical + Dual Horizontal/History + Dual Echo Sounder + Dual Horizontal Expansion + Dual Horizontal/Vertical zoomed + MIX mode

Hull Unit

Raising/Lowering time	30 s st 400 mm travel, 20 s at 250 mm travel
Allowable Ship's Speed	20 kn or less (15 kn during raise/lower operation)

Interface

Ports

Video signal output : 1 port, HDMI, XGA NMEA0183 (IEC61162-1): 2 ports, V1.5/2.0/3.0/4.0/4.1, 4800/9600/19200/38400 bps NMEA2000 : 1 port External KP : 1 port. I/O
