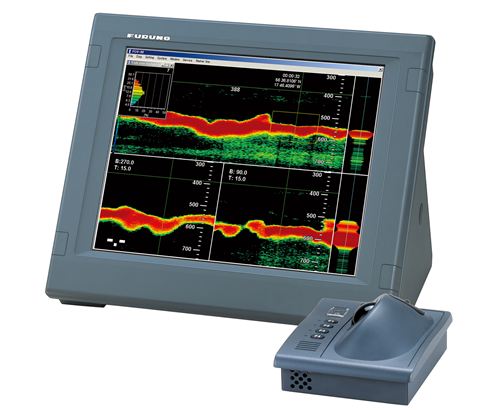

Color Video Sounder FCV-30

---

FEATURES:

• Frequency: 38 kHz; Output power: 4 kW

• Multi-beam system presents images received from up to five beams simultaneously

• Electronic beam stabilizer eliminates the loss of important targets due to ship's motion in rough sea's(within up to 20 degrees)

• 7-degree sharp beamwidth gives a detailed echo image that is produced by high frequency beams

• Automatic range shift for continuous bottom acquisition and tracking

• Heaving compensation* provides unwavering echo images

• Fish size assessment display indicates the length of selected fish in the targeted fish school

• BlackBox system works with conventional SXGA/ XGA PC monitors

• Straightforward operation by use of a trackball control unit

SPECIFICATIONS:



Display

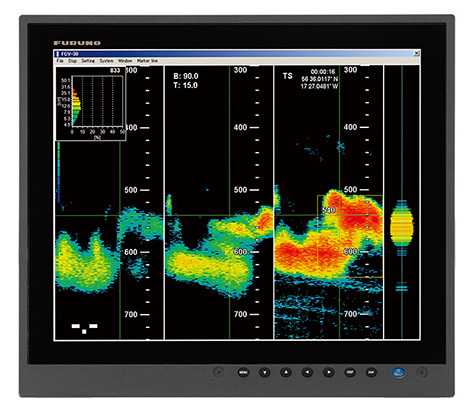

Display unit	FURUNO 19" LCD MU-190HD
Resolution	1024x768 (XGA), 1280x1024 (SXGA)
Display Range	Range: 10-5000 m Shift: 0-5000 m Zoom Range: 2-200 m
Display Mode	Split beam, 3 beam, Split beam+2 beam, User 1, User 2, User 3
Advance Speed	Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 3/1, 4/1, 8/1
Alarm	Bottom, Fish, Bottom fish, Temperature
A-scope	Display selectable among 1/6, 1/8 or 1/10 of screen width.Each transmission is displayed on A-scope.
Record	Raw data, image data

Transceiver

Output Power	4kW
TX Rate	Max. 1200 pulse/min
TX Frequency	38 kHz
Beam Control Range	Bow, stern, port, starboard within 20°

Power Supply

Processor Unit	100-240 VAC: 3A-2A
Transceiver Unit	100-120/200-240 VAC: 5A-3A
