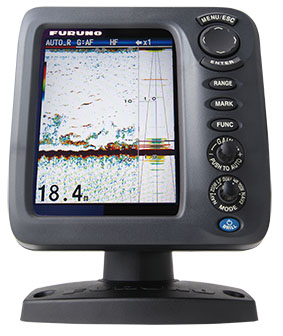

Color LCD 5.7" Fish Finder FCV-628

---

FEATURES:

• Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology

Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

•  ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

• Bottom Discrimination - Analyze bottom structure

• White Line feature - Discriminate fish lying near the bottom

The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distinctly.

• Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

• Share and display information on a chart plotter

FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-628 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).

Click for Brochure

SPECIFICATIONS:

Display

Display unit	5.7" TFT color LCD
Pixel number	VGA 480 x 640

Fish Finder

Frequency	50 and 200 kHz
Transducer	600 W
Range Scale	2-1200 m
Pulselength & PRR	0.04-3 ms, Max 3,000 pulse/min
Display Mode	Single frequency (50 or 200 kHz), Dual frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™

Equipment List

• DISPLAY UNIT, FCV-627-E
• CABLE ASSEMBLY
• INSTALLATION MATERIALS AND STANDARD SPARE PARTS
