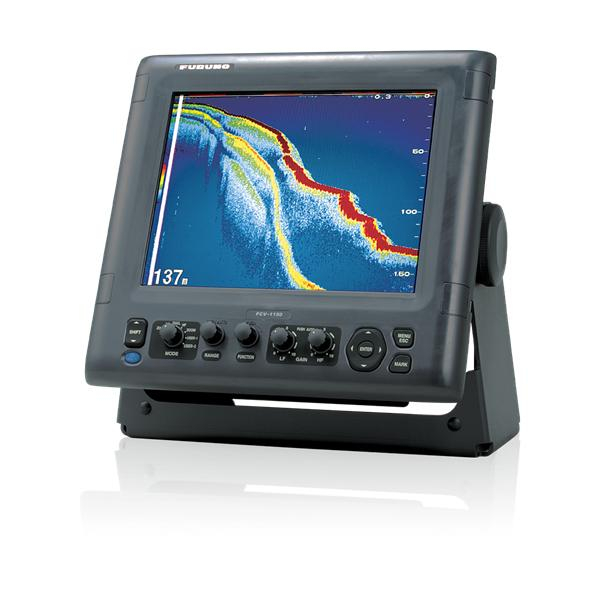

Color LCD 12.1" Sounder FCV-1150

FEATURES:

12.1 LCD with AR coated glass filter and anti-polarized sunglass filter
Post-processing gain control applies changes to gain setting to all existing returns on the display
White Edge bottom discrimination
Available Heaving Compensation provides stable echo presentation even in rough seas
FURUNO Digital Filter delivers crystal clear target presentation
Furuno Free Synthesizer (FFS) allows for adjustable operating frequency

Display unit	12.1" TFT color LCD
Pixel number	800 × 600

Frequency	The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer	1, 2 or 3 kW
Range Scale	5-3000 m
Pulselength & PRR	20-3000 pulse/min
Display Mode	Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

Waterproofing	IP55 (When flush mounted)
Power Supply	12-24 VDC: 3.3-1.7 A 100/110/220/230 VAC, optional rectifier required
Size	345 (H) x 356 (W) x 199 (D)
Weight	Bracket Mount: 8.2 kg Flush Mount: 6.8 kg
