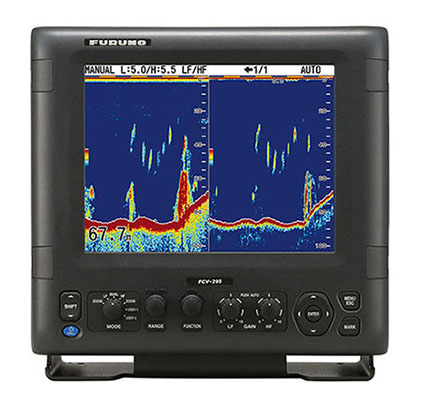

Color LCD 10.4" Sounder FCV-295

---

FEATURES:

• 10.4" bonded color LCD provides clear view in any weather conditions

• Post-processing gain control applies to all existing returns on the display

• White Edge function traces the bottom contour with a thin white line

• FURUNO Digital Filter delivers crystal clear target presentation

• FURUNO Free Synthesizer transceiver allows adjustable operating frequency

SPECIFICATIONS:

Display

Display unit	10.4" TFT color LCD
Pixel number	640 x 480

Fish Finder

Frequency	The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer	1, 2 or 3 kW
Range Scale	5-3000 m
Pulselength & PRR	20-3000 pulse/min
Display Mode	Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing	IP55 (When flush mounted)
Power Supply	12-24 VDC: 2.6-1.3 A 100/110/220/230 VAC, optional rectifier required
Size	306 (H) x 323 (W) x 185 (D)
Weight	7.0 kg
