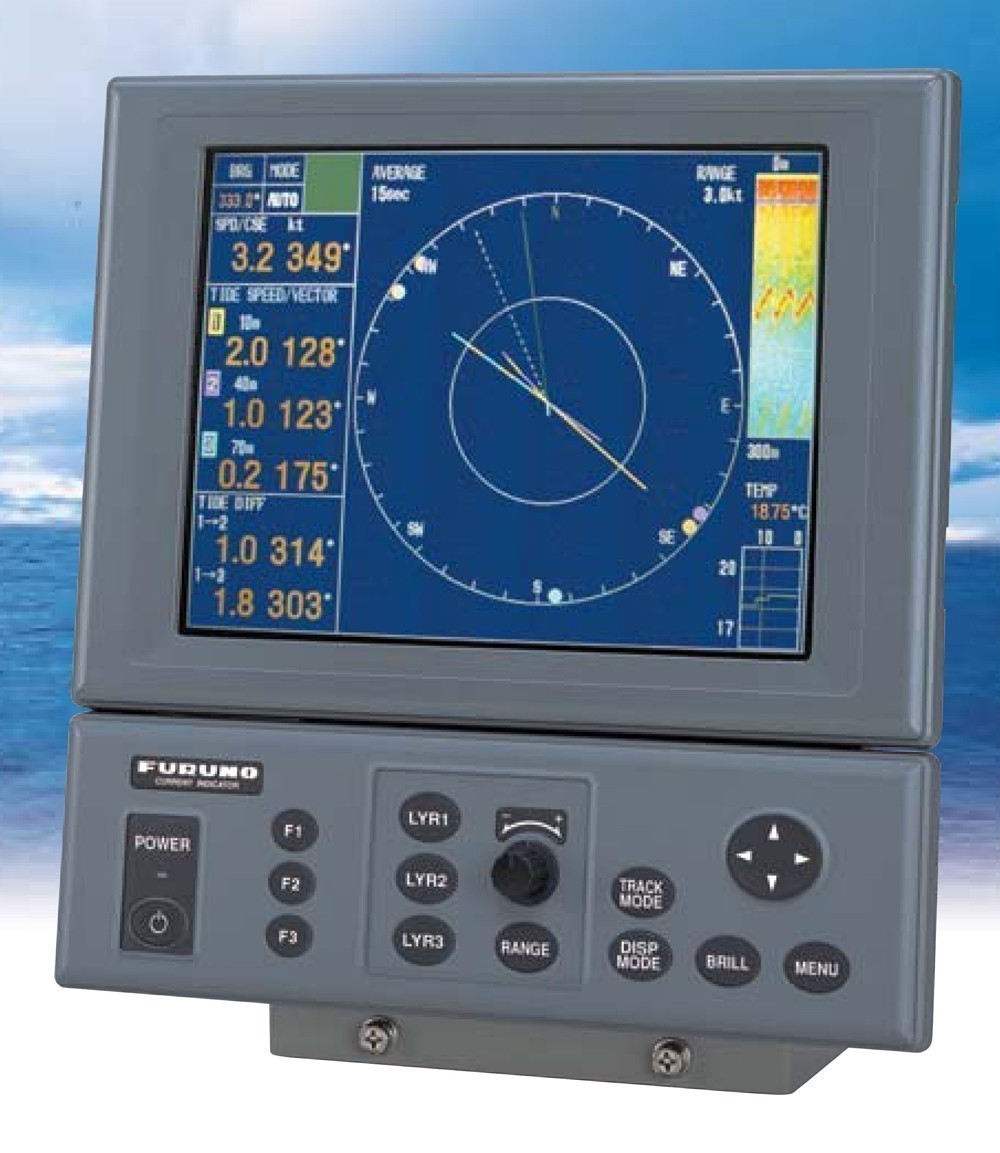

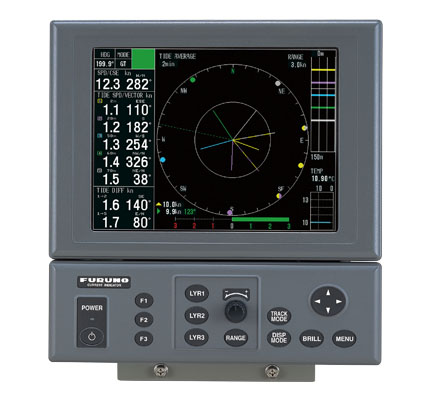

CI-68 Current Indicator

---

FEATURES:

• Compact 3-unit design for ease of installation and maintenance

• High definition 10.4" color LCD

• Black box system configuration allows for use of optional CRT or LCD monitors

• Continuous display of tide speed and direction at five different depth layers

• Triple-beam system for less error in tide current detection

• True tide current presentation with external GPS navigator and Satellite compass









SPECIFICATIONS:

General

Display unit	10.4" TFT color LCD, 640 x 480 pixels
Tide Speed	0.0?9.9 kt
Measurements Accuracy	± 2% of ship's speed + 0.2 kt
Number of layers	5 layers
Depth Range	2 to 75% of water depth up to 150 m (Over 22 m of water depth is required in Ground tracking mode. Over 40 m water depth is required in Water Tracking mode)
Frequency	244 kHz
Waterproofing	Transceiver/Monitor unit: IPX0 Control unit: IPX2 (panel), IPX0 (chassis) Junction box: IPX4 Transducer: IPX8
Power Supply	115/230 VAC
Size	327 (H) x 290 (W) x 171 (D)
Weight	Display/Control Unit (MU-100C?CI-6888?6.0 kg) Transceiver Unit (CI-6810?19.0 kg) Transducer (CI-620-1-68?21 kg)
