WideLink B600W AIS Class B SO

---

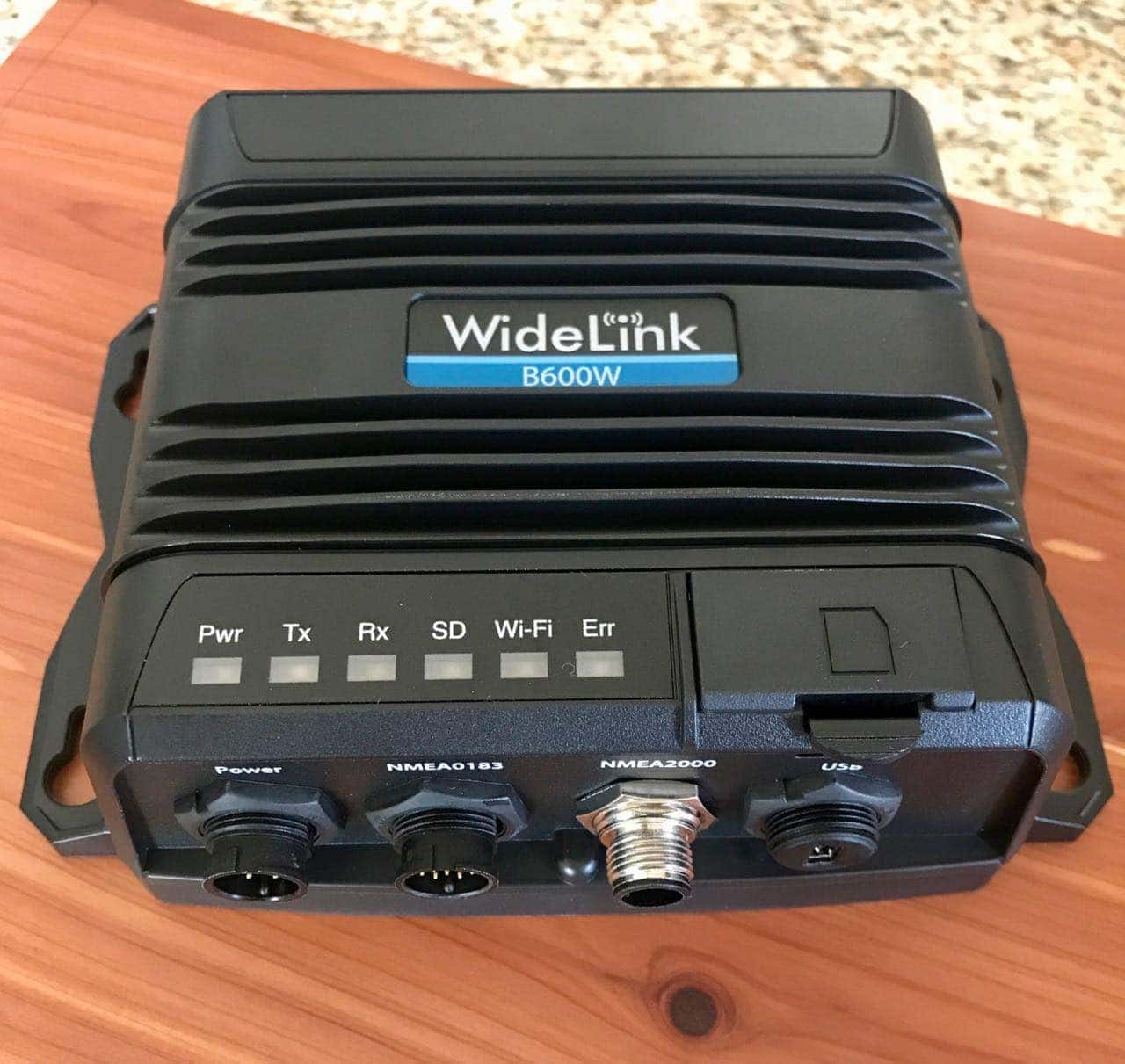

WideLink B600W is the Wi-Fi variation of the advanced B600 SOTDMA AIS class B transponder. Its powerful Wi-Fi module enables a stable connection with mobile devices. When working in AP mode, it can connect to 32 smartphones, table PCs or laptops. B600W can also join an existing Wi-Fi network in client mode.
The WideLink B600W converts NMEA 2000 instrument data into NMEA 0183 sentences, such as heading, speed, depth, temperature, wind, pressure and so on. With the multiplexing function, sensor data along with AIS and GPS information can be displayed on chart plotters and PC programs.

FEATURES:

• New Generation AIS class B trasonder based on advanced SOTDMA technology

• Tested and Approved by BSH, CE RED certified

• Support 5 watt output power for longer transmission range

• NMEA 2000, dual NMEA 0183 and USB connectivity

• Comapct and Robust housing, IP67 waterproof

• Built-in SD card slot for data logging and firmware upgrade

• Optional silent mode(TX off) operation

• Optional alarm relay output

• High performance WI-FI supporting AP & Client mode (B600W only)

• Integrated zero loss antenna splitter (B600S only)



Click for Brochure

SPECIFICATIONS:

APPLICABLE STANDARDS
ISO MSC. 74(69) Annex	IEC 60945 Ed. 4.0:2002
ITU-RM. 825-3:1998	IEC 61108-1 Ed. 2.0:2003
ITU-RM. 1084-5:2012	IEC 61162-1 Ed. 5.0:2016
ITU-RM. 1371-5:2014	IEC 61162-2 Ed. 1.0:1998
EN 300 440 V2.1.1 (Final Draft)	IEC 62287-2 Ed. 2.0:2017
EN 300 328 V2.1.1	EN 62311:2008
EN 301 489-1 V2.1.0 (Draft) / EN 301 489-3 V2.1.0 (Draft)	EN 301 489-1 V2.1.0 (Draft) / EN 301 489-17 V3.1.0 (Draft)

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013



VHF TRANSCEIVER
Frequency Range	156.025 MHz ~ 162.025 MHz
Access Scheme	SOTDMA
Channel Bandwidth	25 KHz
Modulation	GMSK / FM
Data Rate	9600 bps
Number of AIS Transmitter	1
Number of AIS Receiver	2 (one time-shared between AIS and DSC)
Number of DSC Receiver	1 (time-shared between AIS and DSC)
AIS Channel 1	CH 87B (161.975 MHz)
AIS Channel 2	CH 88B (162.025 MHz)
Tx Power Output	5 Watt (37 dBm ± 1.5 dB) 1 Watt (30 dBm ± 1.5 dB)
Rx Sensitivity	<-107 dBm @ 20% PER
Rx Message Format	AIS Class A & B Messages



DSC RECEIVER
Modulation	1300 Hz / 2100 Hz FSK
Data Rate	1200 bps ± 30 ppm
Spurious Response Rejection	≥ 70 dB for signal @ -104 dBm; BER ≤ 1%
Blocking	≥ 84 dB for signal @ -104 dBm; BER ≤ 1%



GNSS RECEIVER (INTEGRATED)
Receiving Channel	72 Channels
Accuracy	IEC 61108-1 Compliant
Output Rate	1 Hz
Support	GPS, GLONASS, BeiDou, Gallieo



POWER SUPPLY
Supply Voltage	12V / 24V DC, 2A
Power Consumption	Typically less than 3W average @ 12V DC



CONNECTION INTERFACE
GPS Antenna Connector	TNC (Female)
VHF Antenna Connector	SO-239 (Female)
VHF Radio Connector (B600S)	SO-239 (Female)
NMEA 2000	Standard Connector
NMEA 0183 (RS-422)	Support two NMEA0183 interfaces  Default Baud Rate 38400 & 4800 bps Configurable and Separate Tx/Rx baud rate Standard IEC 61162-1 / IEC 61162-2 sentences
Silent Mode Setting	Set by dedicated pins in the 12-pin cable
Internal Alarm Relay Setting	Set by dedicated pins in the 8-pin cable
USB	Mini-B type, waterproof



ENVIRONMENTAL
Operating Conditions	IEC 60945 "Protected" Category
Operating Temperature	-15ºC ~ + 55ºC (+5ºF~+130ºF)
Waterproof	IP67



PHYSICAL
W*H*D (Exclude Connector)	177*60*132 mm (6.97*2.36*5.2 inches)
Weight	500 g



SOFTWARE TOOL

AMEC AIS Configuration AMEC AIS Viewer AMEC AIS App



COMPASS SAFETY DISTANCE
Standard Magnetic Compass	0.30 mm
Steering Magnetic Compass	0.30 mm



WI-FI POWER (B600W ONLY)
Tx Transmit Power	19.53 dBm (EIRP)
Frequency Range	2412 MHz ~ 2462 MHz

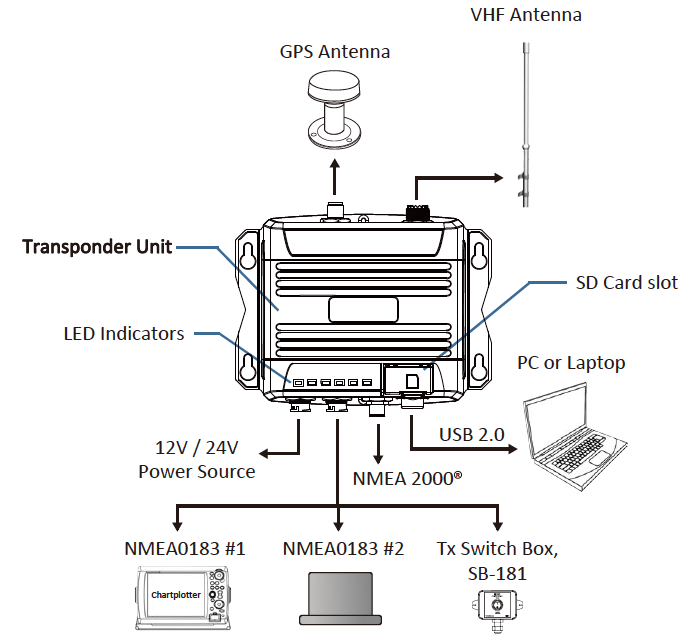

Connection Diagram
