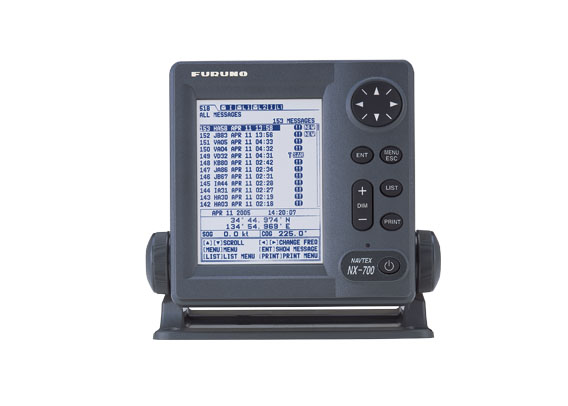

NAVTEX RECEIVER (LCD only) NX-700B

---

FEATURES:

• Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously

• Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)

• 200 message of average length 500 characters can be stored in nonvolatile memory

• Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception

• Display messages on a clear 5" silver bright LCD

• Low power consumption

• NAV data display acts as NMEA repeater for GPS or instruments

SPECIFICATIONS:

General

Receiving Frequency	518 kHz and 490 kHz or 4209.5 kHz, receive both frequencies simultaneously
Mode of Reception	F1B
Sensitivity	2µV e.m.f. (50 ohms), 4% error rate
Message Capacity	200 messages x 2 channels (100,000 characters x 2 channels)
Waterproofing	Antenna Unit: IP66 Receiver Unit: IP20 Display Unit: IP25 (front panel)
Power Supply	12-24 VDC: 0.7-0.4 A
Weight	0.7 kg 1.5 lb

Interface

Input	IEC61162-1/-2: ACK, ACN, CRQ, GGA, GLL, GNS, HBT, NRM, RMC VBW, VHW, VTG, ZDA, PFEC
Output	ALC, ALF, ALR, ARC, HBT, NRM, NRX
