Marine VHF RADIOTELEPHONE FM-4800
FEATURES:
-
Built-in GPS
-
ATIS mode for inland waterways
-
Built-in AIS receiver
-
Loud Hailer
-
Class D DSC
-
NMEA2000 Interface
-
Dual Station
SPECIFICATIONS:
General
| Channels | International, USA and Canada |
| Frequency Stability | Within ± 1.5 kHz |
| Communication System | Simplex / Semi-duplex |
| Antenna Impedance | 50 ohms |

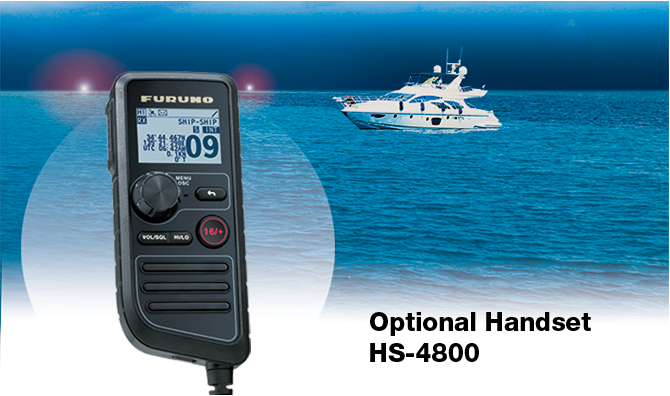

| Display | Monochrome, 192 x 128 dot (FM-4800, HS-4800) |
Transmitter
| Frequency Range | 156.025 MHz to 162.000MHz |
| Output Power | 25 W max., 1 W at power reduction |
| Frequency Deviation | ± 5 kHz max |
| Spurious Emission | Standby : less than 2nW Transmit: less than 0.25 μW 16K0G3E (F3E9) Voice, 16K0G2B (F2B) DSC |
Receiver
| Frequency Range | 56.025 MHz to 162.0375 MHz 162.550 MHz to 163.275 MHz (Weather Channel in US & Canada only) |
| Sensitivity | ± 6 dBμV e.m.f. or less (SINAD 20 dB) |
| Channel Selectivity | 70 dB or more |
| Spurious Response | 70 dB or more |
