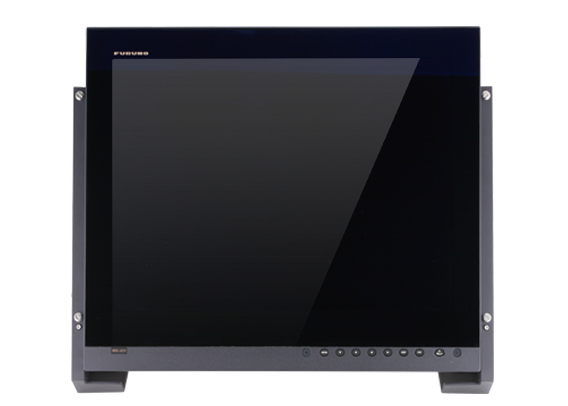

MARINE DISPLAY 23.1" MU-231
FEATURES:
-
Crystal clear 23.1" marine grade monitor for use as main or remote display
-
Resolution : 1600 x 1200 UXGA
-
Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
-
Table top/Ceiling or Flush Mount
-
Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
-
Automatic signal recognition and scaling for easy setup and installation
SPECIFICATIONS:
General
| Display unit | 23.1" COLOR LCD |
| Screen Resolution | 1600 x 1200 ?UXGA? |
| Contrast | 600?1 |
| Viewing Angle | (Vertical) up/down?80°or more (Horizontal) left/right?80°or more |
| Screen Brightness | 400 cd/? |
| Interface | Analog RGB (D-SUB/15 pins): 1 port DVI-D: 2 ports Composite Video (NTSC/PAL): 1 port |
| Temperature | −15 ? to +55 ? |
| Waterproofing | IP22 |
| Power Supply | 100-230 VAC?0.7−0.4 A |
| Weight | Flush mount?12.8 kg Bracket mount?18.9 kg |
Equipment List
- DISPLAY UNIT, MU-231
- FLUSH MOUNT PANEL FOR FIXING AT FRONT
- INSTALLATION MATERIALS AND SPARE PARTS
