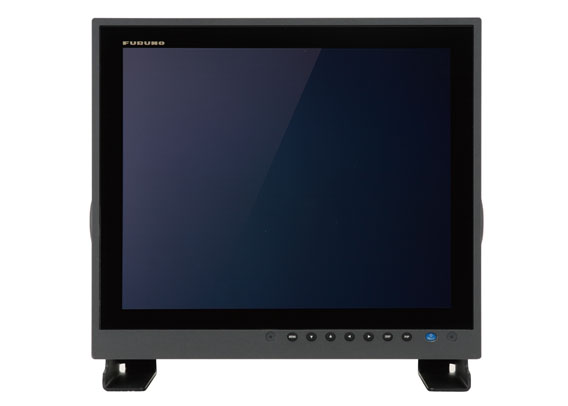

MARINE DISPLAY 19" MU-190HD
FEATURES:
-
Crystal clear 19" marine grade monitor for use as main or remote display
-
Resolution: 1280 x 1024 SXGA
-
Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution
-
1,000 cd/? brightness and A/R coating provides superior visibility even in direct sunlight
-
Bonded LCD provides clear view in any weather conditions
-
1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available
-
Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
-
Automatic signal recognition and scaling for easy setup and installation
SPECIFICATIONS:
General
| Display unit |
|
| Screen Resolution | 1280 x 1024 (SXGA) *Resolution from VGA to SXGA are accepted |
| Contrast | 900?1 |
| Viewing Angle | (Vertical) up/down?80°or more (Horizontal) left/right?80°or more |
| Screen Brightness | 1000 cd/? |
| Interface | Analog RGB (D-SUB/15 pins): 1 port DVI-D: 2 ports Composite Video (NTSC/PAL): 3 ports |
| Temperature | −15 ? to +55 ? |
| Waterproofing | IP56 (front panel), IP22 (rear panel) |
| Power Supply | 12-24 VDC, 8.4 - 3.9 A |
| Weight | Flush mount?8.2 kg |
Equipment List
- DISPLAY UNIT MU-190HD
- POWER CABLE
- INSTALLATION MATERIALS AND SPARE PARTS
