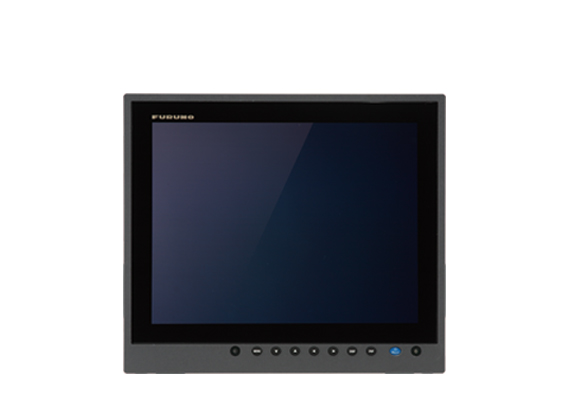

MARINE DISPLAY 15" MU-150HD

---

FEATURES:

• Crystal clear 15" marine grade monitor for use as main or remote display

• Resolution : 1024 x 768 XGA

• Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution

• 1,000 cd/? brightness and A/R coating provides superior visibility even in direct sunlight

• Bonded LCD provides clear view in any weather conditions

• Automatic dimmer sensor adjusts the display brightness as light conditions change

• 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available

• Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

• Table Top or Flush Mount (Table Top bracket is optional)

• Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

• Automatic signal recognition and scaling for easy setup and installation

Click for Brochure

SPECIFICATIONS:

General

Display unit	15" COLOR LCD
Screen Resolution	1024 x 768 (XGA) *Resolution from VGA to SXGA are accepted
Contrast	600?1
Viewing Angle	(Vertical) up/down?80°or more (Horizontal) left/right?80°or more
Screen Brightness	1000 cd/?
Interface	Analog RGB (D-SUB/15 pins): 1 port DVI-D: 2 ports Composite Video (NTSC/PAL): 3 ports
Temperature	−15 ? to +55 ?
Waterproofing	IP56 (front panel), IP22 (rear panel)
Power Supply	12-24 VDC, 4.5 - 2.2 A
Weight	Flush mount?5.4 kg Bracket mount?7.4 kg

Equipment List

• DISPLAY UNIT, MU-150HD
• INSTALLATION MATERIALS AND SPARE PARTS
• POWER CABLE, 5m
