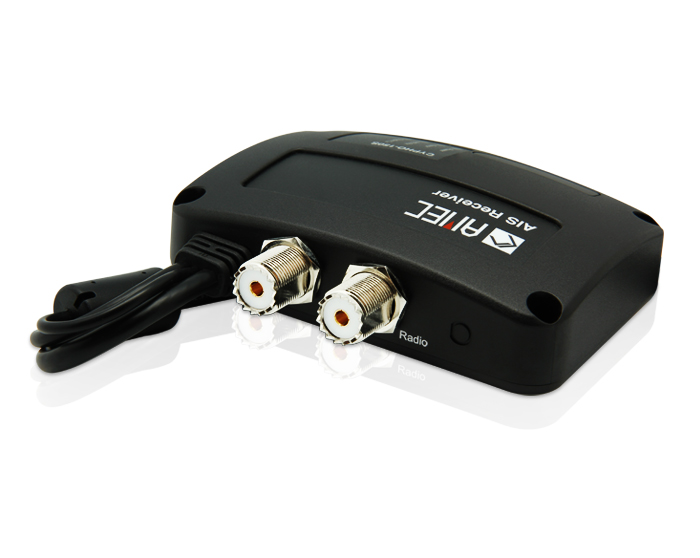

CYPHO-150S AIS Receiver

---

The AMEC CYPHO-150 (any CYPHO-150 model) is an AIS receiver. It receives AIS navigation data from AIS-equipped vessels nearby and the data is utilized to improve navigation safety. CYPHO-150 is designed to inter-operate with AIS Class A or Class B transponders, or any other AIS station operating on the AIS VHF data link.

FEATURES:

• Dual-channel parallel AIS receivers

The CYPHO-150S includes two AIS receivers operating in parallel providing true dual-channel simultaneous reception of both Class A and Class B transponder signals. This ensures that all AIS transponder broadcasts are captured in real time.

• Viewer program included

The CYPHO 150S includes a free Windows-based AIS viewer program to display Radar View and Alphanumeric information about AIS targets.

• Versatile interface selection

NMEA0183 (RS422) and USB provide connections for a wide range of display devices. This unit can also be powered by the USB port or via the 12vDC power wires.

• Robust USB chipset and device drivers

Rock solid Microchip Technology USB chipset with device drivers for current 32-bit and 64-bit versions of Microsoft Windows and fully compatible with marine navigation software such as Coastal Explorer.

• CYPHO-150S comes with integrated VHF antenna splitter

The CYPHO-150S comes with an integrated VHF antenna splitter. This simplifies installation by allowing you to safely share a single VHF antenna for both the AIS receiver and your VHF radio. This solution works with any VHF radio. When you are not transmitting on the radio, both the AIS receiver and the radio receive normally. When you transmit on the radio, the integrated splitter temporarily blocks the signal to the AIS receiver and protects the AIS receiver from the transmission power of the radio.



Click for Brochure

SPECIFICATIONS:

APPLICABLE STANDARDS

IEC 62287-1 (applicable parts) IEC 60945 (applicable parts) IEC 61162 (applicable parts) ITU-R M.1371 (applicable parts)



AIS RECEIVER

Number of AIS Receivers	2 Channels
Frequency Range	156.025 ~ 162.025 MHz
CH-1	Default CH87B (161.975 MHz)
CH-2	Default CH88B (162.025 MHz)
Channel Bandwidth	25 KHz
Message Format	AIS Class A & B Messages
Data Rate	9600 bps / per channel
Receive Sensitivity	-112 dBm @ PER ≤ 20%



POWER SUPPLY

Supply Voltage	12 / 24 VDC
Power Consumption	< 1.50 Watt



LED INDICATION

Power, Error, AIS Rx, Radio Tx



RF PERFORMANCE

VHF Port Insertion Loss

Receiver Path (3.5dB) Transmit Path (1.2dB)



EXTERNAL CONNECTORS

VHF Antenna Connector	SO-239 (Female)
NMEA0183	38400 (default), 9600, 4800 bps
USB 2.0	Supported
VHF Radio	Supported



ENVIRONMENTAL

Operating Temperature	-15ºC~55ºC
Storage Temperature	-25ºC~70ºC
Humidity Operation	0~95% RH at 40ºC
Vibration	IEC 60945
Waterproof	IPX2



PHYSICAL DIMENSIONS

Length	128mm (4.99 inch)
Width	36mm (1.40 inch)
Depth	88mm (3.43 inch)
Weight	210 g (including cable)
