AIDS TO NAVIGATION (SEALIGHT)
A middle size lighted buoy suitable for use designation marine construction work areas as either a paermanent or provisional buoy , and location marking for fish farming. Because, it has enough buoyancy and stable for use in these area.
A middle size lighted buoy can effect as a daytime beacon. It has high intensity LED type lantern for enough intensity.
A middle size lighted buoy can be utilized as either a permanent or provisional buoy.
Available to use Synchronizer, and Top mark as optional specification.
SPECIFICATIONS:
SE-150
| Height Overall | Approx. 4.5 m |

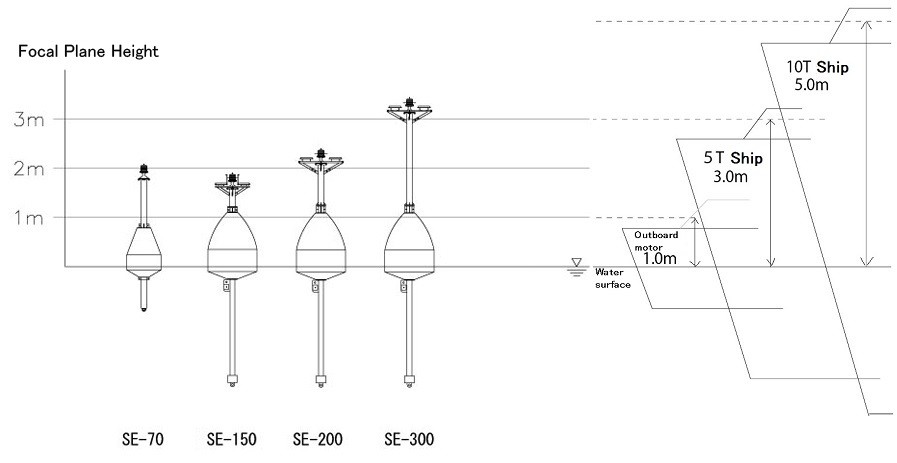

| Focal Plane Height | Approx. 1.5 m |
| Body Diameter | Φ1.0 mm |
| Total Weight | Approx. 160 kg |
| Reserved Buoyancy | Approx. 570 kg |
| Lens | Φ123 mm Fresnel Lens |
| Characteristics | 12V.4.8W LED Lamp FI. 4sec. |
| Light Color | Clear Yellow Red Green |
| Power Source | Solar Panel & Rechargeable Battery (12V) |
| Main Material | Anti-Corrosive Aluminum Alloy and Steel |
SE-200
| Height Overall | Approx. 5.0 m |
| Focal Plane Height | Approx. 2.2 m |
| Body Diameter | Φ1.0 mm |
| Total Weight | Approx. 130 kg |
| Reserved Buoyancy | Approx. 570 kg |
| Lens | Φ123 mm Fresnel Lens |
| Characteristics | 12V.4.8W LED Lamp FI. 4sec. |
| Light Color | Clear Yellow Red Green |
| Power Source | Solar Panel & Rechargeable Battery (12V) |
| Main Material | Anti-Corrosive Aluminum Alloy and Steel |
SE-300
| Height Overall | Approx. 6.0 m |
| Focal Plane Height | Approx. 3.2 m |
| Body Diameter | Φ1.0 mm |
| Total Weight | Approx. 140 kg |
| Reserved Buoyancy | Approx. 570 kg |
| Lens | Φ123 mm Fresnel Lens |
| Characteristics | 12V.4.8W LED Lamp FI. 4sec. |
| Light Color | Clear Yellow Red Green |
| Power Source | Solar Panel & Rechargeable Battery (12V) |
| Main Material | Anti-Corrosive Aluminum Alloy and Steel |
